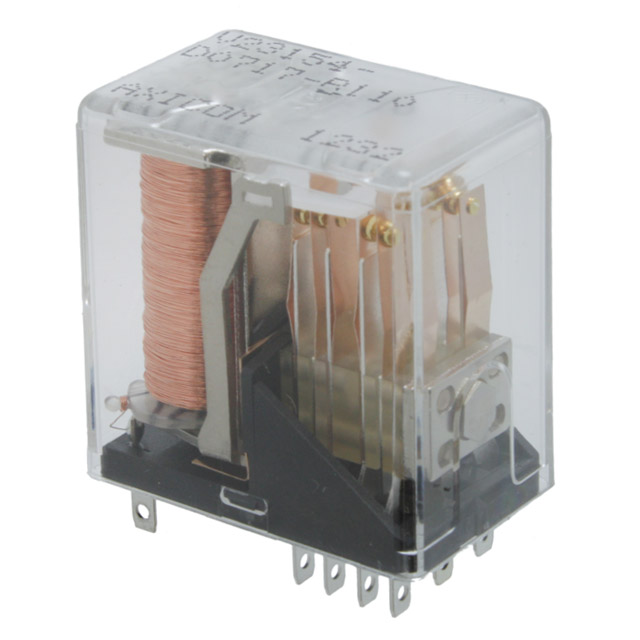

V23154/Cradle Relay N Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
LOW SIGNAL RELAYS - PCB V23154M 722B104
| Part | Coil Type | Contact Rating (Current) | Contact Form | Switching Voltage [Max] | Load - Max Switching | Termination Style | Release Time | Coil Current | Coil Voltage | Relay Type | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Must Operate Voltage | Operate Time | Mounting Type | Contact Material [custom] | Contact Material [custom] | Load - Max Switching | Coil Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Non Latching | 2 A | DPDT (2 Form C) | 125 VAC 150 VDC | 250 VA 300 W | PC Pin | 3 ms | 18.8 mA | 32 VDC | General Purpose | Gold (Au) Silver (Ag) | 70 °C | -40 C | 16.9 VDC | 7.5 ms | Through Hole | ||||
 TE Connectivity AMP Connectors | Non Latching | 200 mA | DPDT (2 Form C) | 30 VAC 36 VDC | Plug In | 3 ms | 9.5 mA | 72 VDC | General Purpose | 70 °C | -40 C | 36.2 VDC | 7.5 ms | Socketable | Gold | Au | ||||
TE Connectivity AMP Connectors | Non Latching | 5 A | DPDT (2 Form C) | 125 VAC 150 VDC | 625 VA | PC Pin | 3 ms | 16.7 mA | 48 VDC | General Purpose | Silver (Ag) | 70 °C | -40 C | 23 VDC | 7.5 ms | Through Hole | 750 W | |||
TE Connectivity AMP Connectors | Non Latching | 200 mA | DPDT (2 Form C) | 30 VAC 36 VDC | Plug In | 3 ms | 0.015 A | 48 VDC | General Purpose | 70 °C | -40 C | 30 VDC | 7.5 ms | Socketable | Gold | Au | ||||
 TE Connectivity AMP Connectors | Non Latching | 2 A | 6PST-NO (6 Form A) | 125 VAC 150 VDC | 250 VA 300 W | Plug In | 3 ms | 0.015 A | 48 VDC | General Purpose | Gold (Au) Silver (Ag) | 70 °C | -40 C | 37 VDC | 7.5 ms | Socketable | 3.2 kOhms | |||
TE Connectivity AMP Connectors | Non Latching | 5 A | DPST-NO/NC (1 Form A 1 Form B) | 125 VAC 150 VDC | 625 VA | Plug In | 3 ms | 16.7 mA | 24 VDC | General Purpose | Silver (Ag) | 70 °C | -40 C | 11 VDC | 7.5 ms | Socketable | 750 W |
