Isolated DC/DC Converters - SMD
Isolated DC/DC Converters - SMD
| Part | Efficiency | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Voltage - Isolation | Voltage - Output 3 | Power (Watts) | Current - Output (Max) | Voltage - Output 1 | Package / Case | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Input (Max) [Max] | Voltage - Output 2 | Voltage - Input (Min) [Min] | Features | Applications | Type | Number of Outputs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

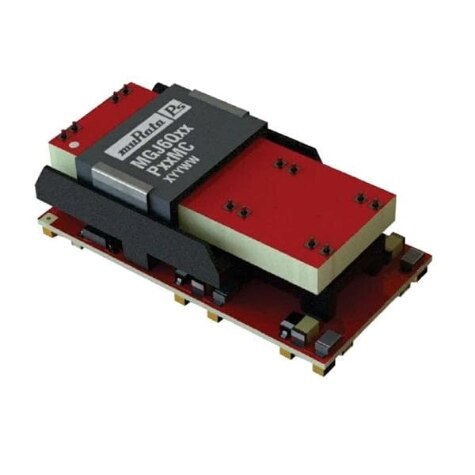

 Murata Power Solutions Inc. | 84 % | 22.6 mm | 44.1 mm | 0.56 " | 14.1 mm | 0.89 in | 1.74 " | 5.2 kV | 24 V | 6 W | 42 mA 125 mA | 24 V | 11-SMD Module | Surface Mount | -40 °C | 105 ░C | 18 V | 24 V | 9 V | SCP UVLO | ITE (Commercial) Medical | Isolated Module | 4 |
 Murata Power Solutions Inc. | 84 % | 22.6 mm | 44.1 mm | 0.56 " | 14.1 mm | 0.89 in | 1.74 " | 5.2 kV | 24 V | 6 W | 42 mA 125 mA | 24 V | 11-SMD Module | Surface Mount | -40 °C | 105 ░C | 18 V | 24 V | 9 V | SCP UVLO | ITE (Commercial) Medical | Isolated Module | 4 |
