ENB2449 Series

Catalog

EMBED,NBLADE,200L,UFL

Part	Applications	Frequency Range [Min]	Frequency Range [Max]	Frequency Group	Gain	Number of Bands	Frequency (Center/Band)	RF Family/Standard	Height (Max) [Max] [z]	Height (Max) [z]	Termination	VSWR	Features	Antenna Type	Features	Mounting Type

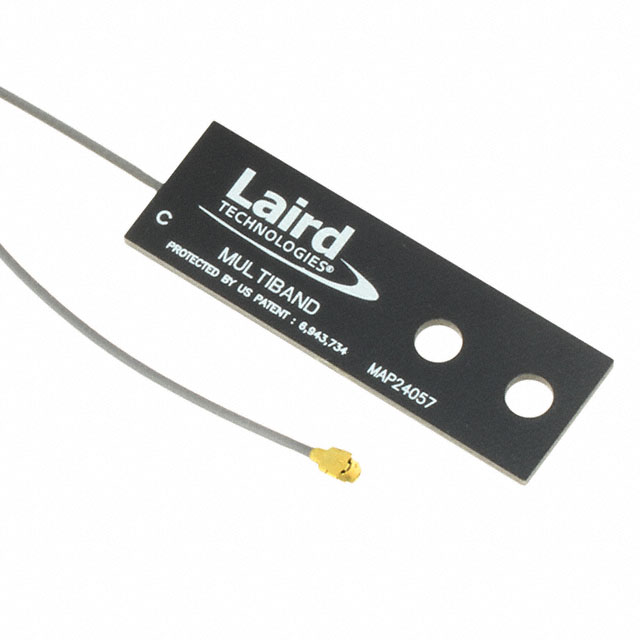

Ezurio LLC ENB2449A1-20UFL	Bluetooth WLAN	2.4 GHz 5.15 GHz 5.6 GHz	2.5 GHz 5.35 GHz 6 GHz	Wide Band	3.19 dBi 4.1 dBi 4.35 dBi	3	2.45 GHz 5.25 GHz 5.8 GHz	Bluetooth WiFi	0.65 in	16.5 mm	I-PEX MHF	2	Cable - 200mm
Ezurio LLC ENB2449A1-10MH4L	WLAN	2.4 GHz 5.15 GHz 5.6 GHz	2.5 GHz 5.35 GHz 6 GHz	SHF UHF	3.19 dBi 4.1 dBi 4.35 dBi	3	2.45 GHz 5.25 GHz 5.8 GHz	WiFi			I-PEX MHF4L	2	Cable	PCB Trace	100 mm	Surface Mount
Ezurio LLC ENB2449A1-20UFL	Bluetooth WLAN	2.4 GHz 5.15 GHz 5.6 GHz	2.5 GHz 5.35 GHz 6 GHz	Wide Band	3.19 dBi 4.1 dBi 4.35 dBi	3	2.45 GHz 5.25 GHz 5.8 GHz	Bluetooth WiFi	0.65 in	16.5 mm	I-PEX MHF	2	Cable - 200mm
Ezurio LLC ENB2449A1-10MH4L	WLAN	2.4 GHz 5.15 GHz 5.6 GHz	2.5 GHz 5.35 GHz 6 GHz	SHF UHF	3.19 dBi 4.1 dBi 4.35 dBi	3	2.45 GHz 5.25 GHz 5.8 GHz	WiFi			IPEX MHF4L	2	Cable	PCB Trace	100 mm	Surface Mount
