172043 Series
Manufacturer: Molex
Beta
⌘K

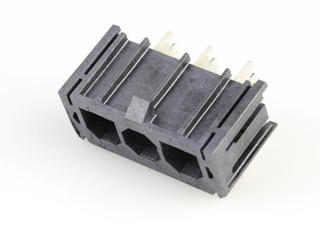

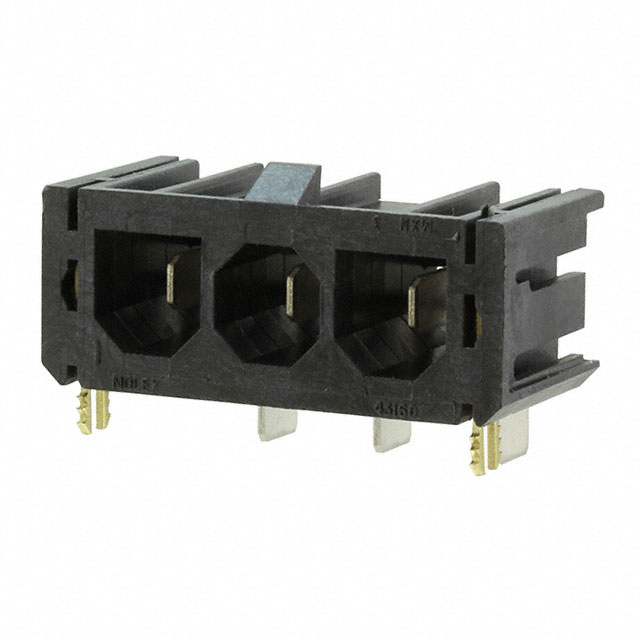

SUPER SABRE RIGHT-ANGLE HEADER, 3 CIRCUIT, LONG SOLDER TAIL WITHOUT BOARD LOCK, COMPLIES WITH UL1977 FINGER PROOF STANDARDS, GLOW-WIRE CAPABLE
| Part | Contact Finish Thickness | Contact Finish Thickness | Current Rating (Amps) | Voltage Rating | Material - Insulation | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish | Fastening Type | Number of Rows | Pitch | Pitch | Color | Mounting Type | Termination | Features | Connector Type | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | 2.54 µm | 100 µin | 30 A | 600 V | Glass Filled Liquid Crystal Polymer (LCP) | Copper | 125 °C | -40 C | Silver | Locking Ramp | 1 | 0.295 in | 7.5 mm | Black | Right Angle Through Hole | Solder | Finger-Proof | Header Male Blades | |
 Molex | 2.54 µm | 100 µin | 30 A | 600 V | Glass Filled Liquid Crystal Polymer (LCP) | Copper | 125 °C | -40 C | Silver | Locking Ramp | 1 | 0.295 in | 7.5 mm | Black | Right Angle Through Hole | Solder | Header Male Blades | 5 | |
 Molex | 2.54 µm | 100 µin | 30 A | 600 V | Glass Filled Liquid Crystal Polymer (LCP) | Copper | 125 °C | -40 C | Silver | Locking Ramp | 1 | 0.295 in | 7.5 mm | Black | Right Angle Through Hole | Solder | Board Lock Finger-Proof | Header Male Blades | 6 |
 Molex | 2.54 µm | 100 µin | 30 A | 600 V | Glass Filled Liquid Crystal Polymer (LCP) | Copper | 125 °C | -40 C | Silver | Locking Ramp | 1 | 0.295 in | 7.5 mm | Black | Right Angle Through Hole | Solder | Finger-Proof | Header Male Blades | 2 |
 Molex | 2.54 µm | 100 µin | 30 A | 600 V | Glass Filled Liquid Crystal Polymer (LCP) | Copper | 125 °C | -40 C | Silver | Locking Ramp | 1 | 0.295 in | 7.5 mm | Black | Right Angle Through Hole | Solder | Board Lock | Header Male Blades | 6 |
Molex | 2.54 µm | 100 µin | 30 A | 600 V | Glass Filled Liquid Crystal Polymer (LCP) | Copper | 125 °C | -40 C | Silver | Locking Ramp | 1 | 0.295 in | 7.5 mm | Black | Right Angle Through Hole | Solder | Header Male Blades | 6 | |
 Molex | 1 | 0.295 in | 7.5 mm | Black | Right Angle Through Hole | Solder | Finger-Proof | Header Male Blades | 6 | ||||||||||
 Molex | 2.54 µm | 100 µin | 30 A | 600 V | Glass Filled Liquid Crystal Polymer (LCP) | Copper | 125 °C | -40 C | Silver | Locking Ramp | 1 | 0.295 in | 7.5 mm | Black | Right Angle Through Hole | Solder | Board Lock Finger-Proof | Header Male Blades | 8 |
Molex | 2.54 µm | 100 µin | 30 A | 600 V | Glass Filled Liquid Crystal Polymer (LCP) | Copper | 125 °C | -40 C | Silver | Locking Ramp | 1 | 0.295 in | 7.5 mm | Black | Right Angle Through Hole | Solder | Board Lock | Header Male Blades | 2 |
 Molex | 1 | 0.295 in | 7.5 mm | Black | Right Angle Through Hole | Solder | Finger-Proof | Header Male Blades | 8 |
