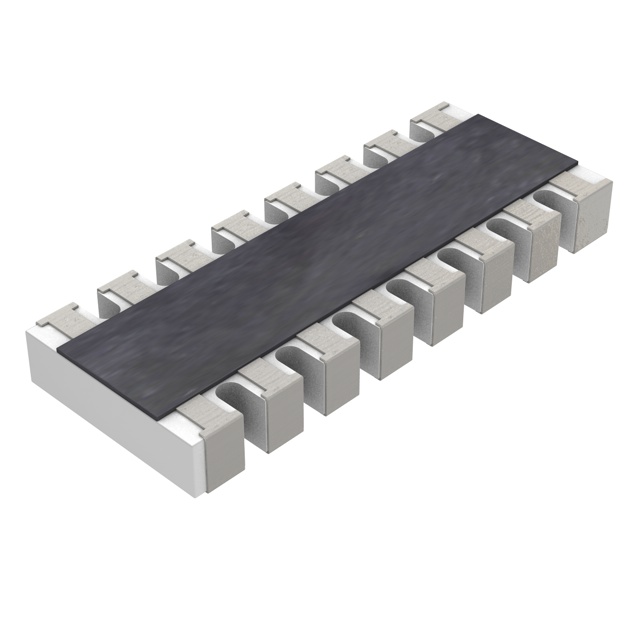

YC248-FR Series

Manufacturer: YAGEO

Catalog

Catalog

RES ARRAY 8 RES 127K OHM 1606

...

Part	Qualification	Temperature Coefficient	Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	Circuit Type	Package / Case	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Applications	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Resistance (Ohms)	Power Per Element	Number of Resistors	Grade	Number of Pins	Resistance (Ohms) [custom]	Resistance (Ohms)
YAGEO YC248-FR-07127KL	AEC-Q200	200 ppm/°C	1 %	155 C	-55 C	Isolated	1606 Convex Long Side Terminals	4 mm	0.157 in	0.063 "	1.6 mm	DDRAM SDRAM	Surface Mount	0.55 mm	0.022 in	127k	62.5 mW	8	Automotive	16
YAGEO YC248-FR-07750RL	AEC-Q200	200 ppm/°C	1 %	155 C	-55 C	Isolated	1606 Convex Long Side Terminals	4 mm	0.157 in	0.063 "	1.6 mm	DDRAM SDRAM	Surface Mount	0.55 mm	0.022 in		62.5 mW	8	Automotive	16	750 Ohms
YAGEO YC248-FR-07510KL	AEC-Q200	200 ppm/°C	1 %	155 C	-55 C	Isolated	1606 Convex Long Side Terminals	4 mm	0.157 in	0.063 "	1.6 mm	DDRAM SDRAM	Surface Mount	0.55 mm	0.022 in		62.5 mW	8	Automotive	16
YAGEO YC248-FR-0768RL	AEC-Q200	200 ppm/°C	1 %	155 C	-55 C	Isolated	1606 Convex Long Side Terminals	4 mm	0.157 in	0.063 "	1.6 mm	DDRAM SDRAM	Surface Mount	0.55 mm	0.022 in		62.5 mW	8	Automotive	16		68 Ohms
YAGEO YC248-FR-0717R8L	AEC-Q200	200 ppm/°C	1 %	155 C	-55 C	Isolated	1606 Convex Long Side Terminals	4 mm	0.157 in	0.063 "	1.6 mm	DDRAM SDRAM	Surface Mount	0.55 mm	0.022 in		62.5 mW	8	Automotive	16		17.8 Ohms
YAGEO YC248-FR-072K4L	AEC-Q200	200 ppm/°C	1 %	155 C	-55 C	Isolated	1606 Convex Long Side Terminals	4 mm	0.157 in	0.063 "	1.6 mm	DDRAM SDRAM	Surface Mount	0.55 mm	0.022 in		62.5 mW	8	Automotive	16	2.4 kOhms
YAGEO YC248-FR-07220KL	AEC-Q200	200 ppm/°C	1 %	155 C	-55 C	Isolated	1606 Convex Long Side Terminals	4 mm	0.157 in	0.063 "	1.6 mm	DDRAM SDRAM	Surface Mount	0.55 mm	0.022 in		62.5 mW	8	Automotive	16		220 kOhms
YAGEO YC248-FR-0715K8L	AEC-Q200	200 ppm/°C	1 %	155 C	-55 C	Isolated	1606 Convex Long Side Terminals	4 mm	0.157 in	0.063 "	1.6 mm	DDRAM SDRAM	Surface Mount	0.55 mm	0.022 in		62.5 mW	8	Automotive	16	15.8 kOhms
YAGEO YC248-FR-0793R1L	AEC-Q200	200 ppm/°C	1 %	155 C	-55 C	Isolated	1606 Convex Long Side Terminals	4 mm	0.157 in	0.063 "	1.6 mm	DDRAM SDRAM	Surface Mount	0.55 mm	0.022 in		62.5 mW	8	Automotive	16		93.1 Ohms
YAGEO YC248-FR-07127RL	AEC-Q200	200 ppm/°C	1 %	155 C	-55 C	Isolated	1606 Convex Long Side Terminals	4 mm	0.157 in	0.063 "	1.6 mm	DDRAM SDRAM	Surface Mount	0.55 mm	0.022 in		62.5 mW	8	Automotive	16	127 Ohms
