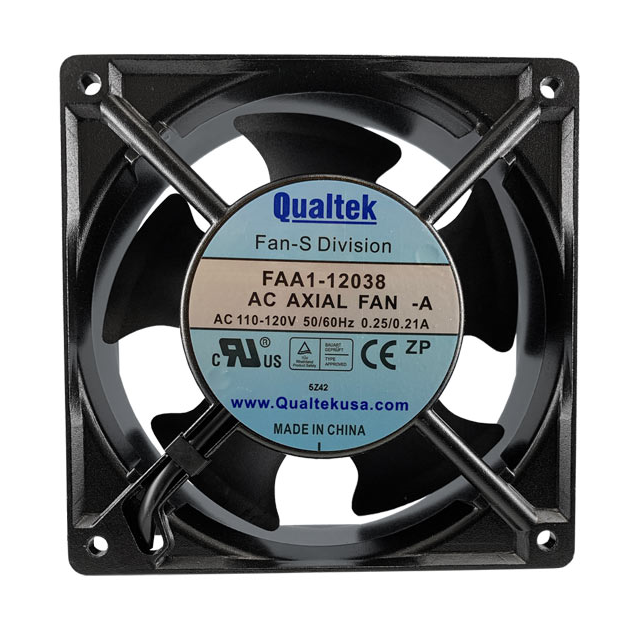

FAA1-12038 Series

Manufacturer: Qualtek

Catalog

AC FANS AC FAN 120X38MM 115VAC HYDRO TERM

Part	Material - Blade	Current Rating (Amps)	Material - Frame	Air Flow	Air Flow	Power (Watts)	Bearing Type	Termination	Static Pressure	Static Pressure	Approval Agency	Voltage - Rated	RPM	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Noise	Weight [custom]	Weight [custom]	Width [y]	Fan Type	Static Pressure	Termination
Qualtek FAA1-12038NHHT31-A	Plastic	190 mA	Aluminum	97 CFM	2.72 m³/min	14 W	Hydrodynamic	2	0.35 in H2O	87.2 Pa	CE cURus TUV	115 VAC	2900 RPM	119.5 mm	119.5 mm	70 °C	-10 °C	44.5 dB	544.3 g	1.2 lbs	38.5 mm	Tubeaxial
Qualtek FAA1-12038QBHT31-A	Plastic	0.09 A	Aluminum	97 CFM	2.72 m³/min	14.8 W	Ball	2	0.35 in H2O	87.2 Pa	CE cURus TUV	230 VAC	2900 RPM	119.5 mm	119.5 mm	70 °C	-10 °C	44.5 dB	544.3 g	1.2 lbs	38.5 mm	Tubeaxial
Qualtek FAA1-12038NSAT31-A	Plastic	70 mA	Aluminum	53.5 CFM	1.5 m³/min	8 W	Sleeve	2		14.9 Pa	CE cURus TUV	115 VAC	1700 RPM	119.5 mm	119.5 mm	60 °C	-10 °C	30.5 dB	544.3 g	1.2 lbs	38.5 mm	Tubeaxial	0.06 in H2O
Qualtek FAA1-12038QBLT31-A	Plastic	50 mA	Aluminum	71.5 CFM	2 m³/min	9.4 W	Ball	2	0.1 in H2O	24.9 Pa	CE cURus TUV	230 VAC	2200 RPM	119.5 mm	119.5 mm	70 °C	-10 °C	37.9 dB(A)	544.3 g	1.2 lbs	38.5 mm	Tubeaxial
Qualtek FAA1-12038QBMT31-A	Plastic	70 mA	Aluminum	87 CFM	2.44 m³/min	12.5 W	Ball	2	0.21 in H2O	52.3 Pa	CE cURus TUV	230 VAC	2800 RPM	119.5 mm	119.5 mm	70 °C	-10 °C	42 dB	544.3 g	1.2 lbs	38.5 mm	Tubeaxial
Qualtek FAA1-12038QBKT31-A	Plastic	120 mA	Aluminum	107 CFM	3 m³/min	19.8 W	Ball	2	0.25 in H2O	62.3 Pa	CE cURus TUV	230 VAC	2600 RPM	119.5 mm	119.5 mm	70 °C	-10 °C	48.1 dB(A)	544.3 g	1.2 lbs	38.5 mm	Tubeaxial
Qualtek FAA1-12038NBKW31-A	Plastic	0.24 A	Aluminum	107 CFM	3 m³/min	19.2 W	Ball		0.25 in H2O	62.3 Pa	CE cURus TUV	115 VAC	2600 RPM	119.5 mm	119.5 mm	70 °C	-10 °C	48.1 dB(A)	544.3 g	1.2 lbs	38.5 mm	Tubeaxial		2 Wire Leads
Qualtek FAA1-12038NSHT31-A				97 CFM	2.72 m³/min	14 W	Sleeve	2	0.35 in H2O	87.2 Pa	CE cURus TUV	115 VAC	2900 RPM	119.5 mm	119.5 mm	60 °C	-10 °C	44.5 dB	544.3 g	1.2 lbs	38.5 mm	Tubeaxial
Qualtek FAA1-12038QBLW31-A	Plastic	50 mA	Aluminum	71.5 CFM	2 m³/min	9.4 W	Ball		0.1 in H2O	24.9 Pa	CE cURus TUV	230 VAC	2200 RPM	119.5 mm	119.5 mm	70 °C	-10 °C	37.9 dB(A)	544.3 g	1.2 lbs	38.5 mm	Tubeaxial		2 Wire Leads
Qualtek FAA1-12038NSLT31-A	Plastic	110 mA	Aluminum	71.5 CFM	2 m³/min	8.7 W	Sleeve	2	0.1 in H2O	24.9 Pa	CE cURus TUV	115 VAC	2200 RPM	119.5 mm	119.5 mm	60 °C	-10 °C	37.9 dB(A)	544.3 g	1.2 lbs	38.5 mm	Tubeaxial
