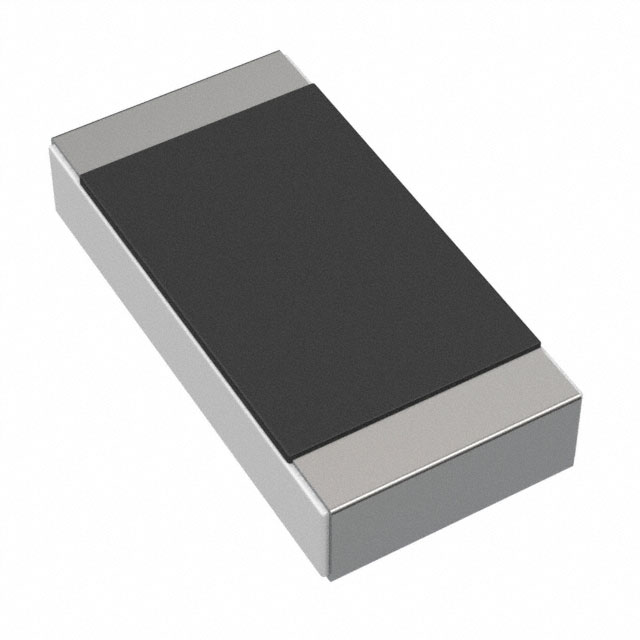

SCRR1206SD Series
Manufacturer: Delta Electronics/Cyntec
Beta
⌘K
RES 0.01 OHM 1% 1/2W 1206
| Part | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Supplier Device Package | Number of Terminations [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case | Power (Watts) | Power (Watts) | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Resistance | Temperature Coefficient [Max] | Temperature Coefficient [Min] | Composition | Tolerance | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics/Cyntec | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 1206 | 2 | -55 C | 125 °C | 1206 (3216 Metric) | 0.5 W | 0.5 W | 0.7 mm | 0.028 " | 10 mOhms | 250 ppm/°C | 0 | Thick Film | 1 % | Current Sense |
Delta Electronics/Cyntec | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 1206 | 2 | -55 C | 125 °C | 1206 (3216 Metric) | 0.5 W | 0.5 W | 0.7 mm | 0.028 " | 0.05 Ohms | 250 ppm/°C | 0 | Thick Film | 1 % | Current Sense |
Delta Electronics/Cyntec | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 1206 | 2 | -55 C | 125 °C | 1206 (3216 Metric) | 0.5 W | 0.5 W | 0.7 mm | 0.028 " | 0.02 Ohms | 250 ppm/°C | 0 | Thick Film | 1 % | Current Sense |
