MS3106R24 Series

Manufacturer: Amphenol Aerospace Operations

Catalog

PLUG

Part	Contact Finish - Mating	Color	Termination	Operating Temperature (Max)	Operating Temperature (Min)	Number of Positions	Mounting Type	Fastening Type	Contact Material	Shell Size - Insert Length	Shell Size - Insert Width	Features	Applications	Grade	Connector Type	Orientation	Qualification	Primary Material	Insert Material	Shell Finish	Shielding	Shell Material	Ingress Protection
Amphenol Aerospace Operations MS3106R24-12S
Amphenol Aerospace Operations MS3106R24-2P	Silver	Olive Drab	Solder Cup	125 °C	-55 °C	7	Free Hanging (In-Line)	Threaded	Copper Alloy	24 mm	2 mm	Cable Clamp Coupling Nut	Marine Military	Military	Male Pins Plug	N (Normal)	MIL-DTL-5015	Metal	Neoprene	Cadmium Olive Drab Chromate	Unshielded	Aluminum Alloy	Environment Resistant

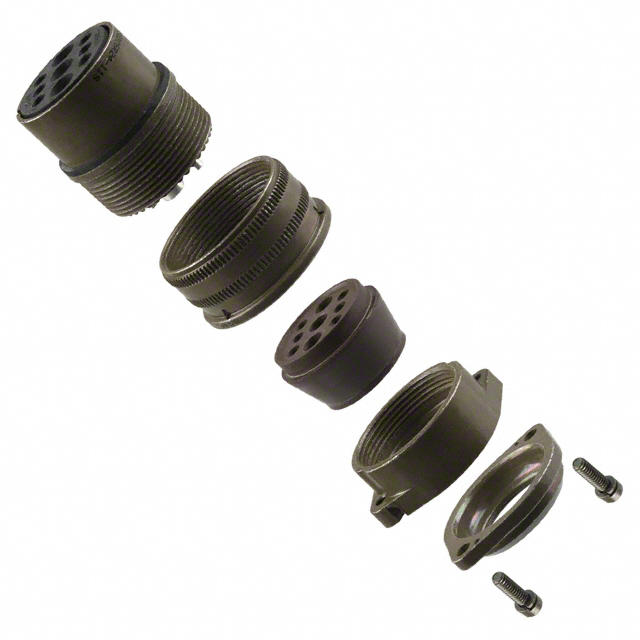

Amphenol Aerospace Operations MS3106R-24-11S	Silver	Olive Drab	Solder Cup	125 °C	-55 °C	9	Free Hanging (In-Line)	Threaded	Copper Alloy	24 mm	11 mm	Cable Clamp Coupling Nut	Marine Military	Military	Female Sockets Plug	N (Normal)	MIL-DTL-5015	Metal	Neoprene	Cadmium Olive Drab Chromate	Unshielded	Aluminum Alloy	Environment Resistant
Amphenol Aerospace Operations MS3106R-24-11S	Silver	Olive Drab	Solder Cup	125 °C	-55 °C	9	Free Hanging (In-Line)	Threaded	Copper Alloy	24 mm	11 mm	Cable Clamp Coupling Nut	Marine Military	Military	Female Sockets Plug	N (Normal)	MIL-DTL-5015	Metal	Neoprene	Cadmium Olive Drab Chromate	Unshielded	Aluminum Alloy	Environment Resistant
Amphenol Aerospace Operations MS3106R-24-2P
Amphenol Aerospace Operations MS3106R24-10S
Amphenol Aerospace Operations MS3106R24-9S
Amphenol Aerospace Operations MS3106R24-28S
Amphenol Aerospace Operations MS3106R-24-2S
