Zmt0 Series Series

Catalog

SWITCH SNAP ACTION N.O./N.C. SPDT PIN PLUNGER 5A 250VAC 24VDC 1.67N SCREW MOUNT SOLDER TRAY

Part	Electrical Life	Pretravel	Pretravel	Mechanical Life	Ingress Protection	Termination Style	Operating Position	Operating Position	Switch Function	Release Force	Mounting Type	Overtravel [custom]	Overtravel [custom]	Current Rating (Amps)	Voltage Rating - AC	Actuator Type	Voltage Rating - DC	Operating Force	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Operating Position [x]	Operating Position [x]
LITTELFUSE ZMT05ACJP00SCE	10000 Cycles	0.02 in	0.5 mm	1000000 Cycles	IP67 - Dust Tight Waterproof	Solder Lug	0.232 in	5.9 mm	On-Mom	35 gf	Chassis Mount	0.008 in	0.2 mm	3 A 5 A	125 V	Round (Pin Plunger)	24 V	170 gf	SPDT	85 °C	-40 C
LITTELFUSE ZMTG03CJS02WCE24	10000 Cycles	0.118 in	3 mm	1000000 Cycles	IP67 - Dust Tight Waterproof	Wire Leads	0.398 in	10.1 mm	On-Mom	8 gf	Chassis Mount	0.024 "	0.6 mm	3 A	125 V	Lever Simulated Roller	24 V	50 gf	SPDT	85 °C	-40 C
LITTELFUSE ZMT03ACJS05KCE22	10000 Cycles	0.138 in	3.5 mm	1000000 Cycles	IP67 - Dust Tight Waterproof	Wire Leads	0.358 in	9.1 mm	On-Mom	7 gf	Chassis Mount	0.026 "	0.7 mm	3 A	125 V	Lever Simulated Roller	24 V	48 gf	SPDT	85 °C	-40 C
LITTELFUSE ZMT03ACJS05LCE	10000 Cycles	0.138 in	3.5 mm	1000000 Cycles	IP67 - Dust Tight Waterproof	PC Pin	0.358 in	9.1 mm	On-Mom	7 gf	Right Angle Through Hole	0.026 "	0.7 mm	3 A	125 V	Lever Simulated Roller	24 V	48 gf	SPDT	85 °C	-40 C
LITTELFUSE ZMT03ACJP00SCE	10000 Cycles	0.02 in	0.5 mm	1000000 Cycles	IP67 - Dust Tight Waterproof	Solder Lug	0.232 in	5.9 mm	On-Mom	35 gf	Chassis Mount	0.008 in	0.2 mm	3 A	125 V	Round (Pin Plunger)	24 V	170 gf	SPDT	85 °C	-40 C

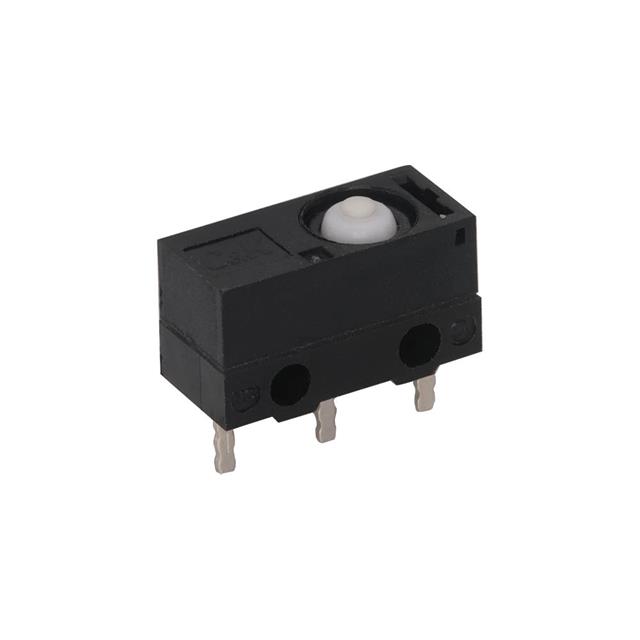

LITTELFUSE ZMT01ACFP00PCE	10000 Cycles	0.02 in	0.5 mm	1000000 Cycles	IP67 - Dust Tight Waterproof	PC Pin	0.232 in	5.9 mm	On-Mom	35 gf	Through Hole	0.008 in	0.2 mm	3 A 100 mA	125 V	Round (Pin Plunger)	24 V	170 gf	SPDT	85 °C	-40 C
LITTELFUSE ZMT03ACJS02JCE22	10000 Cycles	0.118 in	3 mm	1000000 Cycles	IP67 - Dust Tight Waterproof	Wire Leads	0.398 in	10.1 mm	On-Mom	8 gf	Chassis Mount	0.024 "	0.6 mm	3 A	125 V	Lever Simulated Roller	24 V	50 gf	SPDT	85 °C	-40 C
LITTELFUSE ZMT05ACJS06JCE20	10000 Cycles	0.071 "	1.8 mm	1000000 Cycles	IP67 - Dust Tight Waterproof	Wire Leads	0.335 "	8.5 mm	On-Mom	12 gf	Chassis Mount	0.01 "	0.25 mm	3 A 5 A	125 V	Lever Simulated Roller	24 V	65 gf	SPDT	85 °C	-40 C
LITTELFUSE ZMT03ACJL03RCE	10000 Cycles	0.134 "	3.4 mm	1000000 Cycles	IP67 - Dust Tight Waterproof	PC Pin			On-Mom	8 gf	Right Angle Through Hole	0.024 "	0.6 mm	3 A	125 V	Leaf Lever	24 V	56 gf	SPDT	85 °C	-40 C	0.28 in	7.1 mm
LITTELFUSE ZMTG03CJP00PCE	10000 Cycles	0.02 in	0.5 mm	1000000 Cycles	IP67 - Dust Tight Waterproof	PC Pin	0.232 in	5.9 mm	On-Mom	35 gf	Through Hole	0.008 in	0.2 mm	3 A	125 V	Round (Pin Plunger)	24 V	170 gf	SPDT	85 °C	-40 C
