RSF10 Series

Liquid Level Sensors LLS

Manufacturer: Sensata-Crydom

Catalog

Liquid Level Sensors LLS

Catalog

Liquid Level Sensors LLS

Part	Mounting Type	Voltage Rating	Type	Current	Output Type	Output Configuration	Material - Housing & Prism	Operating Temperature [Max]	Operating Temperature [Min]	Minimum Liquid Specific Gravity [Min]	Switch Actuation Level	Switch Actuation Level
Sensata-Crydom RSF16H100RF	M16x2 Thread Panel Mount	300 VDC 300 VAC	Liquid	1 A	Switch (Single Float)	SPST-NC	Polyphenylene Sulphide (PPS)	120 °C	-10 °C	0.75	22 mm	0.866 in
Sensata-Crydom RSF14YFP	M16x2 Thread Panel Mount	120 VDC 240 VAC	Liquid	600 mA	Switch (Single Float)	SPST-NC	Polypropylene (PP)	100 °C	-20 ░C	0.7	24 mm	0.945 in

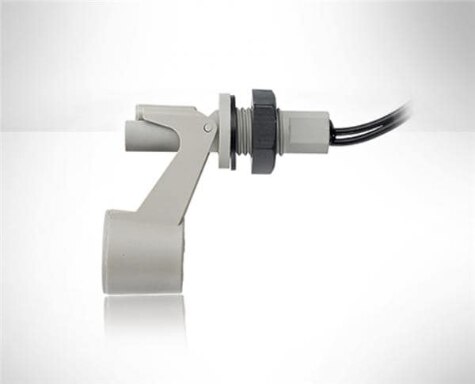

Sensata-Crydom RSF16HFP	M16x2 Thread Panel Mount	300 VDC 300 VAC	Liquid	1 A	Switch (Single Float)	SPST-NC	Polyphenylene Sulphide (PPS)	120 °C	-10 °C	0.75	22 mm	0.866 in
Sensata-Crydom RSF16H050TG	M16x2 Thread Panel Mount	300 VDC 300 VAC	Liquid	1 A	Switch (Single Float)	SPST-NC	Polyphenylene Sulphide (PPS)	120 °C	-10 °C	0.75	22 mm	0.866 in

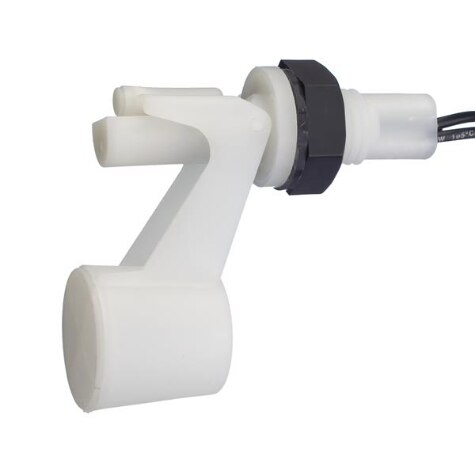

Sensata-Crydom RSF18Y100RF	M16x2 Thread Panel Mount	120 VDC 240 VAC	Liquid	600 mA	Switch (Single Float)	SPST-NC	Polypropylene (PP)	100 °C	-20 ░C	0.8	24 mm	0.945 in

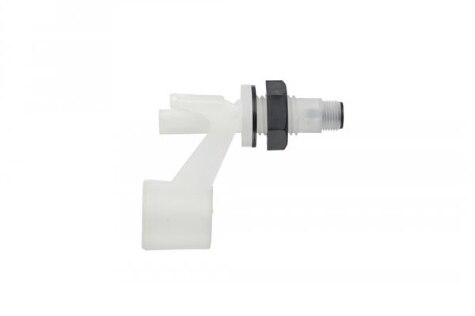

Sensata-Crydom RSF18HFP	M16x2 Thread Panel Mount	300 VDC 300 VAC	Liquid	1 A	Switch (Single Float)	SPST-NC	Polypropylene (PP)	100 °C	-20 ░C	0.8	24 mm	0.945 in
Sensata-Crydom RSF16YFP	M16x2 Thread Panel Mount	120 VDC 240 VAC	Liquid	600 mA	Switch (Single Float)	SPST-NC	Polyphenylene Sulphide (PPS)	120 °C	-10 °C	0.75	22 mm	0.866 in
Sensata-Crydom RSF18H100RF	M16x2 Thread Panel Mount	300 VDC 300 VAC	Liquid	1 A	Switch (Single Float)	SPST-NC	Polypropylene (PP)	100 °C	-20 ░C	0.8	24 mm	0.945 in
Sensata-Crydom RSF14H100RF	M16x2 Thread Panel Mount	300 VDC 300 VAC	Liquid	1 A	Switch (Single Float)	SPST-NC	Polypropylene (PP)	100 °C	-20 ░C	0.7	24 mm	0.945 in

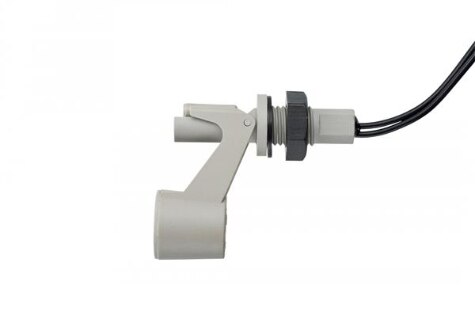

Sensata-Crydom RSF16Y100TG	M16x2 Thread Panel Mount	120 VDC 240 VAC	Liquid	600 mA	Switch (Single Float)	SPST-NC	Polyphenylene Sulphide (PPS)	120 °C	-10 °C	0.75		0.866 in 1.299 in
