CW Series

Catalog

ANTENNAS RF ANT LTE B5 WHIP STR SMA PLUG

Part	Number of Bands	RF Family/Standard	Frequency (Center/Band)	VSWR	Mounting Type	Gain	Frequency Group [Max]	Frequency Group	Frequency Group [Min]	Antenna Type	Features	Frequency Range [Max]	Frequency Range [Min]	Applications	Power - Max [Max]	Height (Max) [z]	Height (Max) [z]	Height (Max) [Max] [z]	Height (Max)

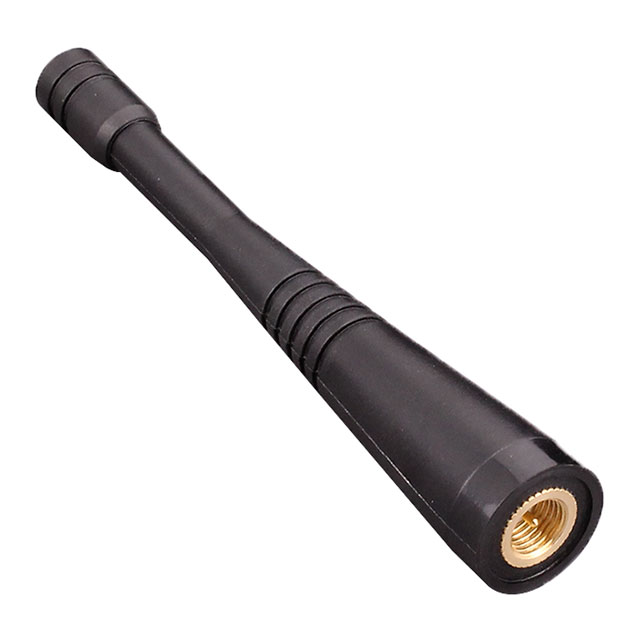

TE Connectivity AMP Connectors ANT-B5-CW-QW-SMA	1	Cellular	800 MHz 850 MHz	2	Connector Mount	1.2 dBi	1 GHz	UHF	300 MHz	Whip Straight	O-Ring Compatible	900 MHz	800 MHz	GSM LTE NB-IoT UMTS	10 W	3.287 in	83.5 mm

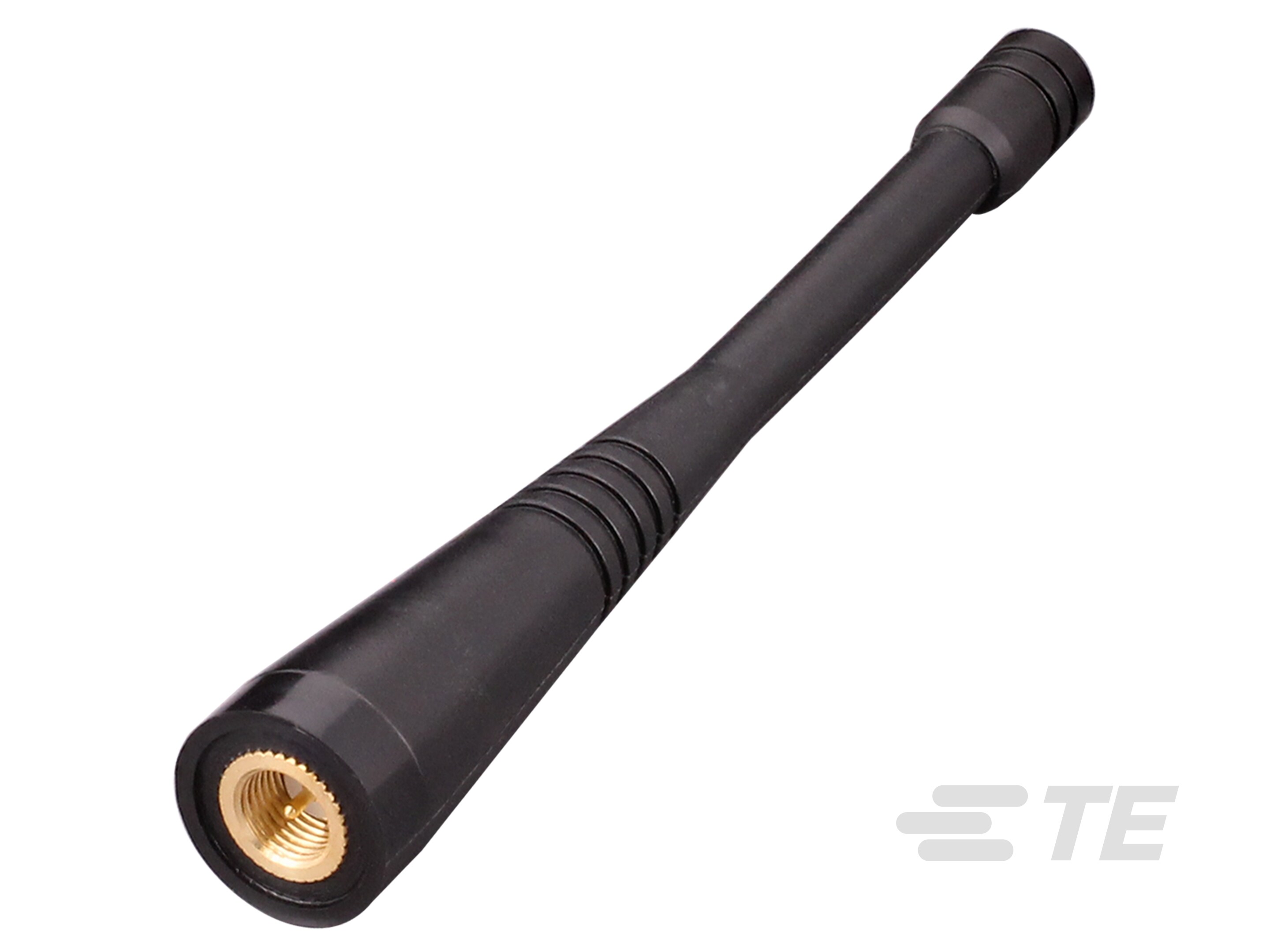

TE Connectivity AMP Connectors ANT-B13-CW-QW-SMA	1	Cellular	700 MHz 750 MHz	1.9	Connector Mount	1.7 dBi	1 GHz	UHF	300 MHz	Whip Straight	O-Ring Compatible	790 MHz	740 MHz	LTE NB-IoT UMTS	10 W			3.874 in	98.4 mm

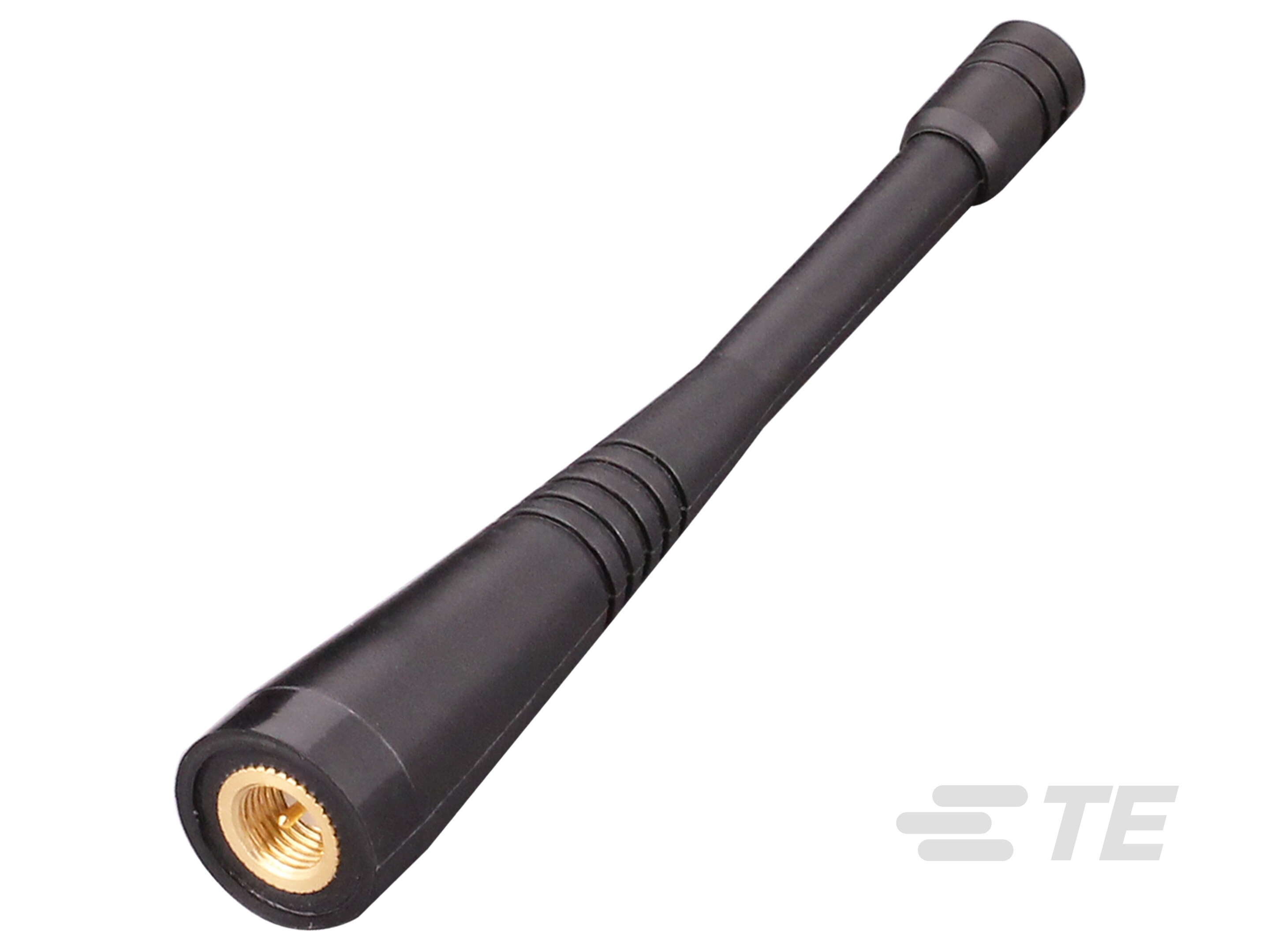

TE Connectivity AMP Connectors ANT-B14-CW-QW-SMA	1	Cellular	750 MHz	2	Connector Mount	1.9 dBi	1 GHz	UHF	300 MHz	Whip Straight	O-Ring Compatible	800 MHz	750 MHz	Firstnet LTE Public Safety	10 W	3.709 in 94.2 mm
