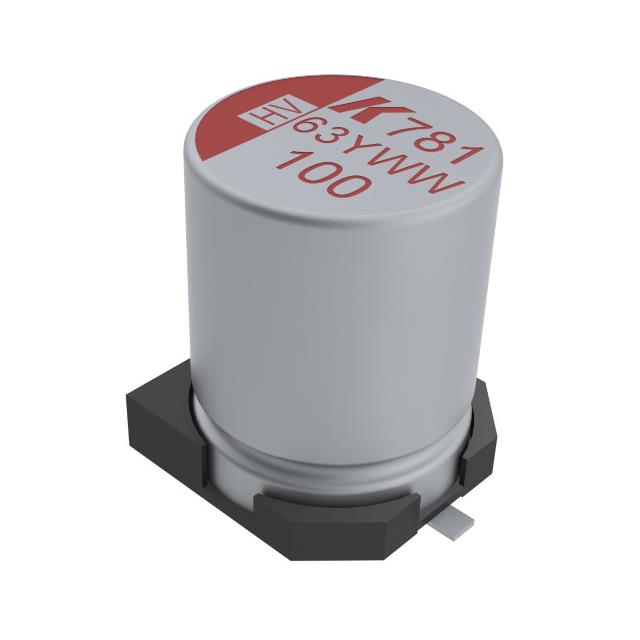

A781 Series

Manufacturer: KEMET

Catalog

ALUMINUM ORGANIC POLYMER CAPACITORS 25VOL 560UF SMD 2KHR ESR=22 MOHMS AECQ200

Part	Ripple Current @ High Frequency	Applications	ESR (Equivalent Series Resistance)	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [diameter]	Size / Dimension [diameter]	Package / Case	Type	Capacitance	Mounting Type	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Tolerance	Voltage - Rated	Ripple Current @ Low Frequency	Lifetime @ Temp.	Ratings	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Features
KEMET A781MS567M1ELAS022	7.45 A	Automotive	22 mOhms	-55 C	135 °C	0.5 in	12.7 mm	0.394 in	10 mm	Radial Can - SMD	Hybrid	560 µF	Surface Mount	0.406 "	0.406 in	10.3 mm	10.3 mm	20 %	25 VDC	2.98 A	2000 Hrs	AEC-Q200
KEMET A781MS277M1VLAV022	7.45 A	Automotive	22 mOhms	-55 C	135 °C			0.394 in	10 mm	Radial Can - SMD	Hybrid	270 µF	Surface Mount			0.406 in	0.425 in	20 %	35 V	2.98 A	2000 Hrs	AEC-Q200	13.2 mm	0.52 in	10.8 mm	10.3 mm	Anti-Vibration
KEMET A781MS107M1JLAV030	6.4 A	Automotive	30 mOhms	-55 C	135 °C			0.394 in	10 mm	Radial Can - SMD	Hybrid	100 µF	Surface Mount			0.406 in	0.425 in	20 %	63 V	1.408 A	2000 Hrs	AEC-Q200	13.2 mm	0.52 in	10.8 mm	10.3 mm	Anti-Vibration
KEMET A781MN187M1VLAS025	7 A	Automotive	25 mOhm	-55 C	135 °C	0.413 "	10.5 mm	0.394 in	10 mm	Radial Can - SMD	Hybrid	180 µF	Surface Mount	0.406 "	0.406 in	10.3 mm	10.3 mm	20 %	35 V	2.8 A	2000 Hrs	AEC-Q200
KEMET A781MS157M1HLAV028	6.6 A	Automotive	28 mOhm	-55 C	135 °C			0.394 in	10 mm	Radial Can - SMD	Hybrid	150 µF	Surface Mount			0.406 in	0.425 in	20 %	50 VDC	1.452 A	2000 Hrs	AEC-Q200	13.2 mm	0.52 in	10.8 mm	10.3 mm	Anti-Vibration
