1123824 Series
Manufacturer: TE Connectivity AMP Connectors

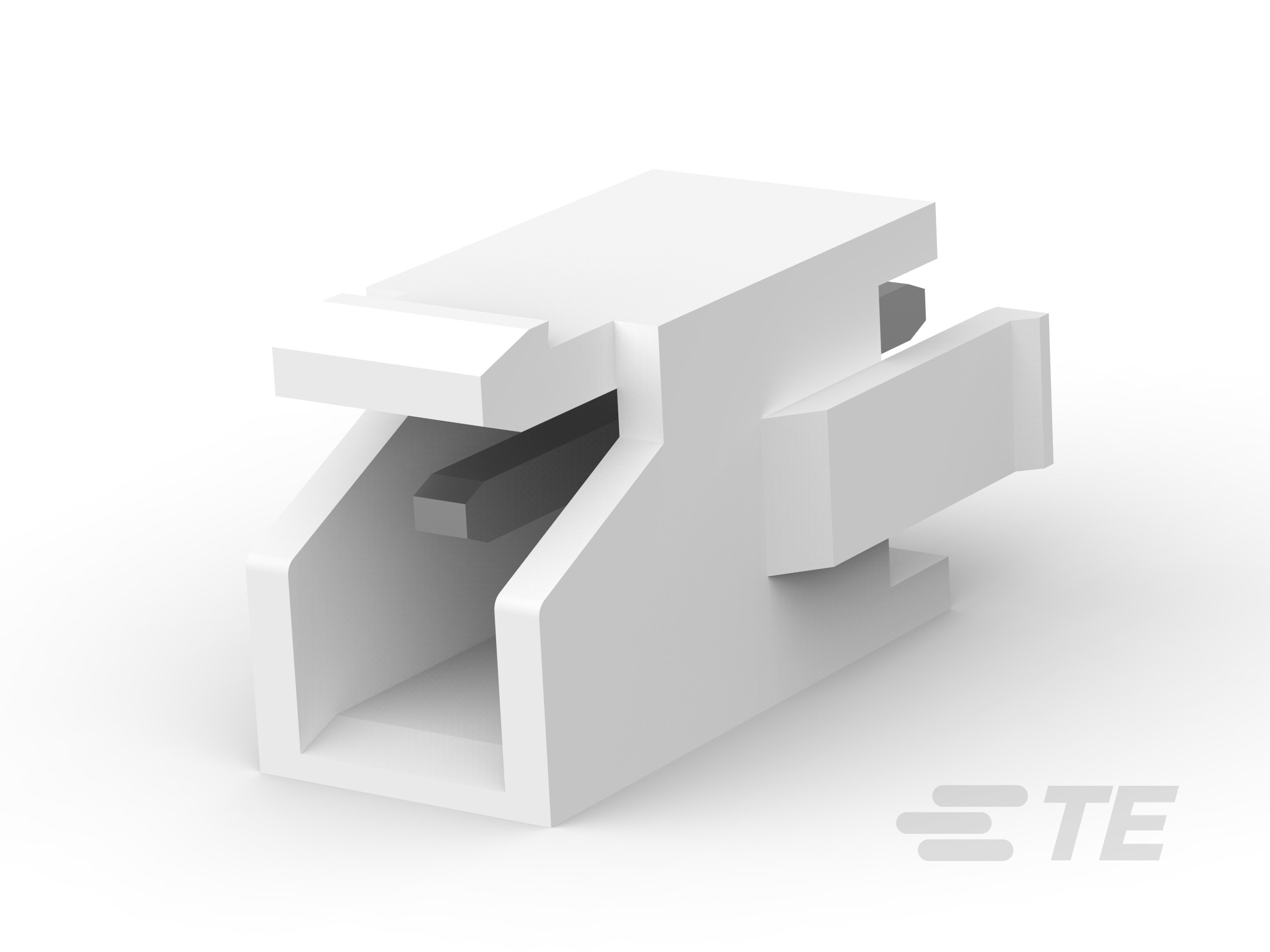

CONN HEADER VERT 1POS
| Part | Applications | Number of Positions | Termination | Contact Shape | Style | Insulation Height | Insulation Height | Contact Finish - Post | Shrouding | Current Rating (Amps) | Contact Type | Contact Material | Insulation Color | Fastening Type | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Features | Number of Rows | Mounting Type | Number of Positions Loaded | Voltage Rating | Insulation Material | Contact Length - Post [x] | Contact Length - Post [x] | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors | General Purpose Industrial Lighting | 1 | Solder | Square | Board to Cable/Wire | 0.528 in | 13.4 mm | Tin | Shrouded - 4 Wall | 7.5 A | Male Pin | Brass | Natural | Locking Ramp | 105 ░C | -25 °C | Header | Board Lock | 1 | Through Hole | All | 250 VAC | Polybutylene Terephthalate (PBT) | 3.7 mm | 0.146 " | UL94 V-0 |
