ECS-2200 Series

Manufacturer: ECS Inc.

Catalog

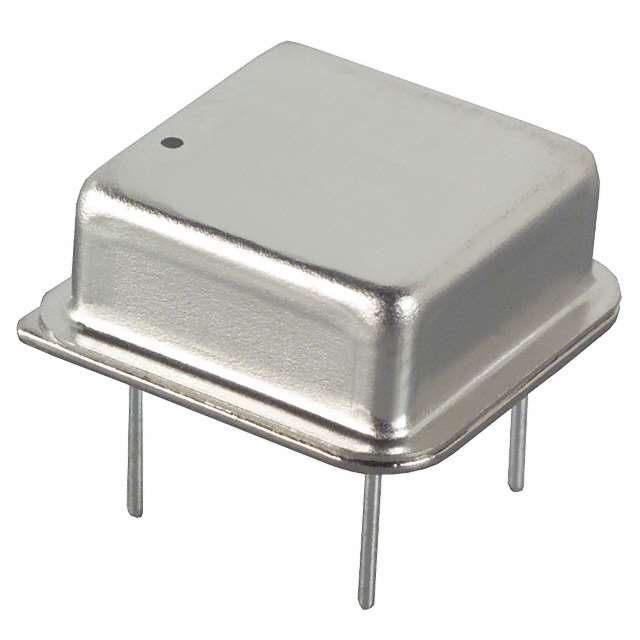

STANDARD CLOCK OSCILLATORS OSC XO 9.8304MHZ HCMOS TTL PC ECS-2200 XO (STANDARD) 9.8304MHZ ENABLE/DISABLE HCMOS, TTL 5V +/-50PPM 0C - 70C 25MA THROUGH HOLE 0.520" L X 0.520" W (13.20MM X 13.20MM) 0.213" (5.40MM) 8-DIP, 4 LEADS (HALF SIZE, METAL CAN)

Part	Function	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Current - Supply (Max) [Max]	Operating Temperature [Max]	Type	Package / Case	Output	Frequency	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Mounting Type	Frequency Stability	Base Resonator [custom]
ECS Inc. ECS-2200B-098	Enable/Disable	0.52 in	13.2 mm	0.52 in	13.2 mm	25 mA	70 °C	XO (Standard)	8-DIP 4 Leads (Half Size Metal Can)	HCMOS TTL	9.8304 MHz	5.4 mm	0.213 in	Through Hole	50 ppm	Crystal
ECS Inc. ECS-2200B-666	Enable/Disable	0.52 in	13.2 mm	0.52 in	13.2 mm	77 mA	70 °C	XO (Standard)	8-DIP 4 Leads (Half Size Metal Can)	HCMOS TTL	66.666 MHz	5.4 mm	0.213 in	Through Hole	50 ppm	Crystal
ECS Inc. ECS-2200B-800	Enable/Disable	0.52 in	13.2 mm	0.52 in	13.2 mm	77 mA	70 °C	XO (Standard)	8-DIP 4 Leads (Half Size Metal Can)	HCMOS TTL	80 MHz	5.4 mm	0.213 in	Through Hole	50 ppm	Crystal
