9814 Series

Catalog

REED RELAY, SPST-NO, 5 VDC, 9814 SERIES, SURFACE MOUNT, 150 OHM, 250 MA

Part	Coil Resistance	Contact Form	Operating Temperature [Max]	Operating Temperature [Min]	Operate Time	Release Time	Must Release Voltage	Switching Voltage	Mounting Type	Contact Rating (Current)	Must Operate Voltage	Termination Style	Coil Voltage	Features	Coil Type	Coil Current
COTO TECHNOLOGY 9814-05-20	150 Ohms	SPST-NO (1 Form A)	85 °C	-20 ░C	0.25 ms	0.05 ms	0.4 VDC	100 VAC 100 VDC	Surface Mount	250 mA	3.8 VDC	J Lead	5 VDC	Magnetic Shield	Non Latching	33.3 mA
COTO TECHNOLOGY 9814-03-20TR	70 Ohms	SPST-NO (1 Form A)	85 °C	-20 ░C	0.25 ms	0.05 ms	0.4 VDC	100 VAC 100 VDC	Surface Mount	250 mA	2.5 VDC	J Lead	3.3 VDC	Magnetic Shield	Non Latching	47.1 mA
COTO TECHNOLOGY 9814-03-20	70 Ohms	SPST-NO (1 Form A)	85 °C	-20 ░C	0.25 ms	0.05 ms	0.4 VDC	100 VAC 100 VDC	Surface Mount	250 mA	2.5 VDC	J Lead	3.3 VDC	Magnetic Shield	Non Latching	47.1 mA
COTO TECHNOLOGY 9814-05-00TR	150 Ohms	SPST-NO (1 Form A)	85 °C	-20 ░C	0.25 ms	0.05 ms	0.4 VDC	100 VAC 100 VDC	Surface Mount	250 mA	3.8 VDC	Gull Wing	5 VDC	Magnetic Shield	Non Latching	33.3 mA
COTO TECHNOLOGY 9814-03-00	70 Ohms	SPST-NO (1 Form A)	85 °C	-20 ░C	0.25 ms	0.05 ms	0.4 VDC	100 VAC 100 VDC	Surface Mount	250 mA	2.5 VDC	Gull Wing	3.3 VDC	Magnetic Shield	Non Latching	47.1 mA
COTO TECHNOLOGY 9814-05-20TR	150 Ohms	SPST-NO (1 Form A)	85 °C	-20 ░C	0.25 ms	0.05 ms	0.4 VDC	100 VAC 100 VDC	Surface Mount	250 mA	3.8 VDC	J Lead	5 VDC	Magnetic Shield	Non Latching	33.3 mA
COTO TECHNOLOGY 9814-05-00	150 Ohms	SPST-NO (1 Form A)	85 °C	-20 ░C	0.25 ms	0.05 ms	0.4 VDC	100 VAC 100 VDC	Surface Mount	250 mA	3.8 VDC	Gull Wing	5 VDC	Magnetic Shield	Non Latching	33.3 mA

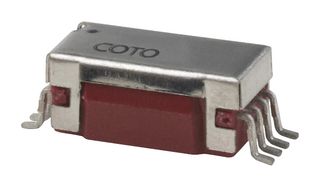

COTO TECHNOLOGY 9814-03-00TR	70 Ohms	SPST-NO (1 Form A)	85 °C	-20 ░C	0.25 ms	0.05 ms	0.4 VDC	100 VAC 100 VDC	Surface Mount	250 mA	2.5 VDC	Gull Wing	3.3 VDC	Magnetic Shield	Non Latching	47.1 mA
