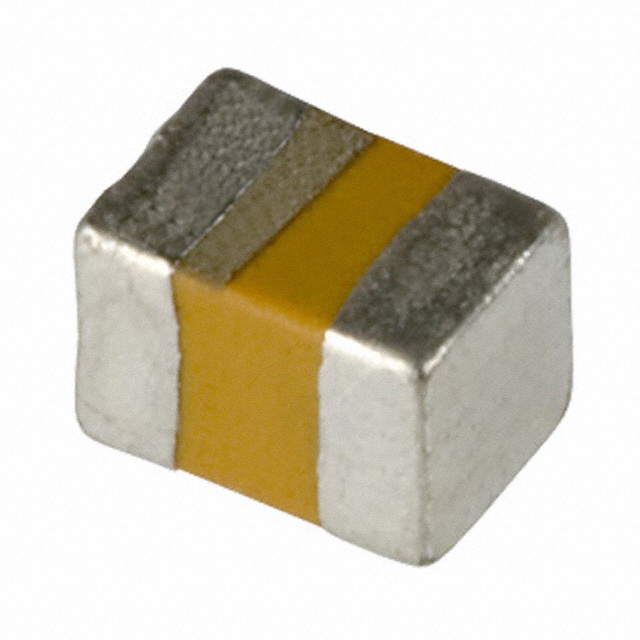

TLC Series
Manufacturer: KYOCERA AVX
Beta
⌘K
TANT SPECIAL - SMP / TAPE/REEL ROHS COMPLIANT: YES
| Part | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | ESR (Equivalent Series Resistance) | Features | Voltage - Rated | Mounting Type | Capacitance | Lifetime @ Temp. | Type | Package / Case | Operating Temperature [Min] | Operating Temperature [Max] | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Manufacturer Size Code | Tolerance | Height - Seated (Max) [Max] | Height - Seated (Max) | Height - Seated (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KYOCERA AVX | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 2000 mOhm | General Purpose | 16 V | Surface Mount | 10 µF | 2000 Hrs | Molded | 1206 (3216 Metric) | -55 C | 125 °C | 0.03 " | 0.75 mm | V | 20 % | |||
 KYOCERA AVX | 0.053 " | 0.079 in | 2 mm | 1.35 mm | 5 Ohm | General Purpose | 6.3 VDC | Surface Mount | 68 µF | 2000 Hrs | Molded | 0805 | -55 C | 125 °C | R | 20 % | 0.059 " | 1.5 mm | |||
 KYOCERA AVX | 0.053 " | 0.079 in | 2 mm | 1.35 mm | 5 Ohm | General Purpose | 10 V | Surface Mount | 10 µF | Molded | 0805 | -55 C | 125 °C | U | 20 % | 0.024 in | 0.6 mm |
