BTS7002 Series
Manufacturer: INFINEON
Beta
⌘K

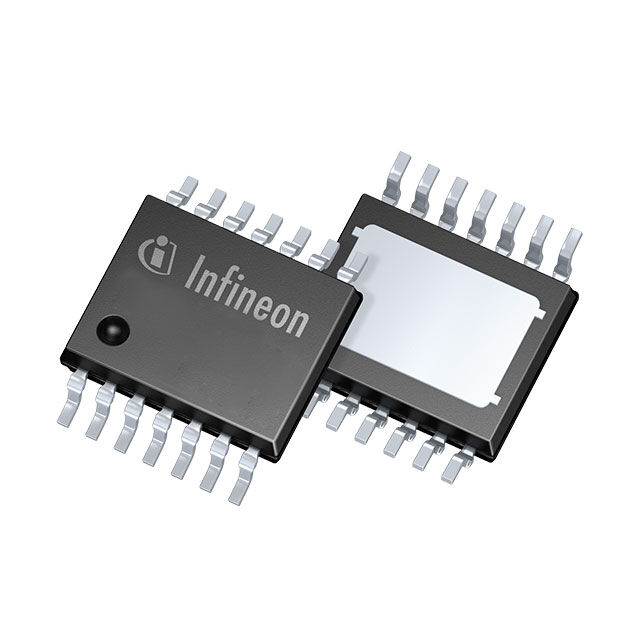

POWER LOAD DISTRIBUTION SWITCH, HIGH SIDE, 1 OUTPUT,1 CHANNEL, 42 V, 133 A, TSDSO-EP-14
| Part | Number of Outputs | Grade | Rds On (Typ) | Package / Case | Package / Case | Supplier Device Package | Current - Output (Max) [Max] | Voltage - Supply (Vcc/Vdd) | Output Configuration | Operating Temperature [Min] | Operating Temperature [Max] | Switch Type | Fault Protection | Interface | Ratio - Input:Output | Qualification | Voltage - Load [Max] | Voltage - Load [Min] | Output Type | Input Type | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 INFINEON | 1 | Automotive | 2.6 mOhm | 14-TSSOP Exposed Pad | 0.154 in 3.9 mm | PG-TSDSO-14-22 | 21 A | Not Required | High Side | -40 °C | 150 °C | General Purpose | Over Current Over Voltage Short Circuit UVLO | On/Off | 1:1 | AEC-Q100 | 18 V | 6 V | N-Channel | Non-Inverting | Surface Mount |
