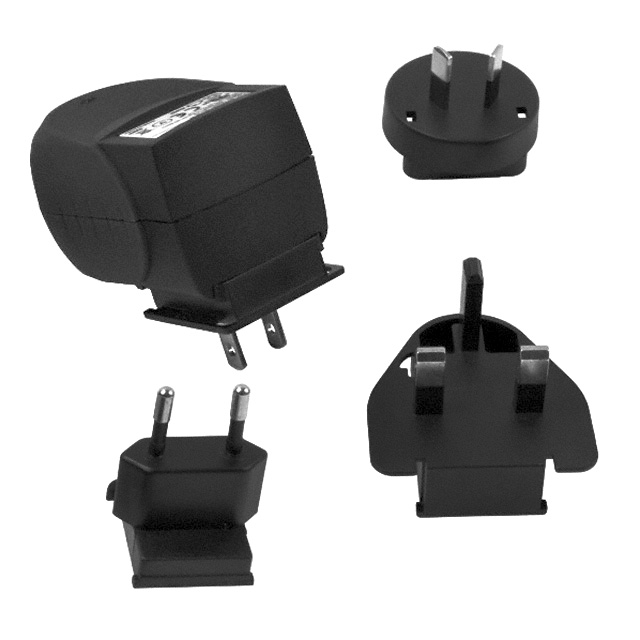

EMMA050200 Series

Manufacturer: CUI Inc.

Catalog

PLUG-IN ADAPTER SINGLE-OUT 5V 2A 10W

Part	Input Connector	Applications	Voltage - Input [Max]	Voltage - Input [Min]	Cord Length	Cord Length	Region Utilized	Output Connector	Output Connector [diameter]	Output Connector [x]	No Load Power Consumption	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Current - Output (Max) [Max]	Power (Watts)	Approval Agency	Efficiency	Standard Number	Input Type	Operating Temperature [Max]	Voltage - Output	Polarization	Form	Weight	Weight	Output Connector [z]
CUI Inc. EMMA050200-P5P-IC	Multi-Blade	Medical	264 VAC	90 VAC	70.9 "	1.8 m	International	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	300 mW	43.3 mm	1.89 in	3.17 in	1.71 in	47.9 mm	80.6 mm	2 A	10 W	EN FCC SIQ TUV UL	Level V	55011 Class B 60601-1 61000-3-2 61000-3-3 61000-6-1 61010-1	Multi-Blade (Included)	50 °C	5 V	Positive Center	Wall Mount	130.18 g	0.287 lb
CUI Inc. EMMA050200-P6P-IC	Multi-Blade	Medical	264 VAC	90 VAC	70.9 "	1.8 m	International	Barrel Plug	2.5 mm 5.5 mm	9.5 mm	300 mW	43.3 mm	1.89 in	3.17 in	1.71 in	47.9 mm	80.6 mm	2 A	10 W	EN FCC SIQ TUV UL	Level V	55011 Class B 60601-1 61000-3-2 61000-3-3 61000-6-1 61010-1	Multi-Blade (Included)	50 °C	5 V	Positive Center	Wall Mount	130.18 g	0.287 lb
CUI Inc. EMMA050200-P6RP-IC	Multi-Blade	Medical	264 VAC	90 VAC	70.9 "	1.8 m	International	Barrel Plug R/A	2.5 mm 5.5 mm		300 mW	43.3 mm	1.89 in	3.17 in	1.71 in	47.9 mm	80.6 mm	2 A	10 W	EN FCC SIQ TUV UL	Level V	55011 Class B 60601-1 61000-3-2 61000-3-3 61000-6-1 61010-1	Multi-Blade (Included)	50 °C	5 V	Positive Center	Wall Mount	130.18 g	0.287 lb	9.5 mm
