M2T12SA Series

Catalog

SWITCH TOGGLE SPDT 6A 125V

Part	Electrical Life	Actuator Material	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Circuit	Current Rating (Amps)	Switch Function	Actuator Length [x]	Voltage Rating - DC	Bushing Thread	Illumination	Features	Actuator Type	Voltage Rating - AC
NKK Switches M2T12SA5A13/CUL	25000 Steps	Brass Chrome Plated	Through Hole	85 °C	-30 ░C	PC Pin	SPDT	4 A 6 A	On-On	0.5 in	30 V	Unthreaded	Non-Illuminated	Process Sealed	Standard Round	125 V

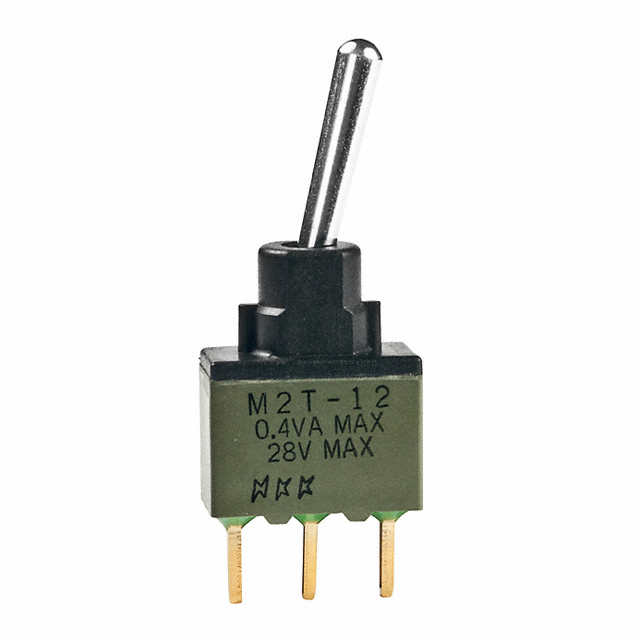

NKK Switches M2T12SA5G03/U	50000 Cycles	Brass Chrome Plated	Through Hole	85 °C	-30 ░C	PC Pin	SPDT	0.4 VA	On-On	0.5 in	28 V	Unthreaded	Non-Illuminated	Process Sealed	Standard Round	28 V
NKK Switches M2T12SA5G03	50000 Cycles	Brass Nickel Plated	Through Hole	85 °C	-30 ░C	PC Pin	SPDT	0.4 VA	On-On	0.5 in	28 V	Unthreaded	Non-Illuminated	Process Sealed	Standard Round	28 V

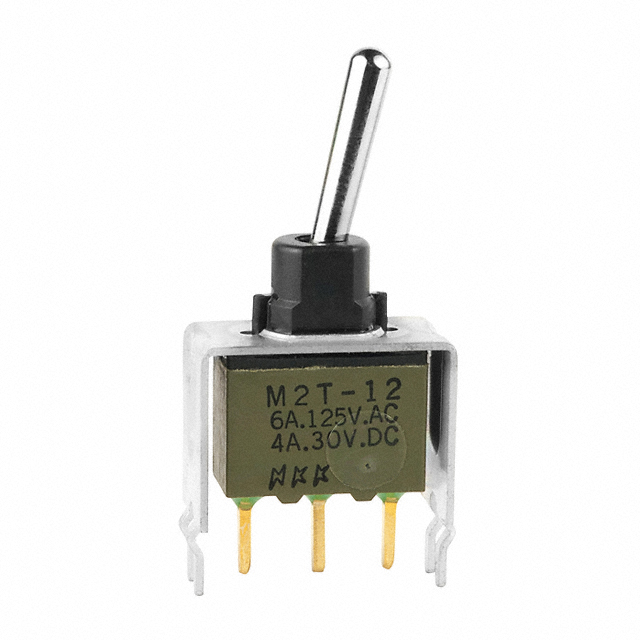

NKK Switches M2T12SA5A13	25000 Steps	Brass Nickel Plated	Through Hole	85 °C	-30 ░C	PC Pin	SPDT	4 A 6 A	On-On	0.5 in	30 V	Unthreaded	Non-Illuminated	Process Sealed	Standard Round	125 V

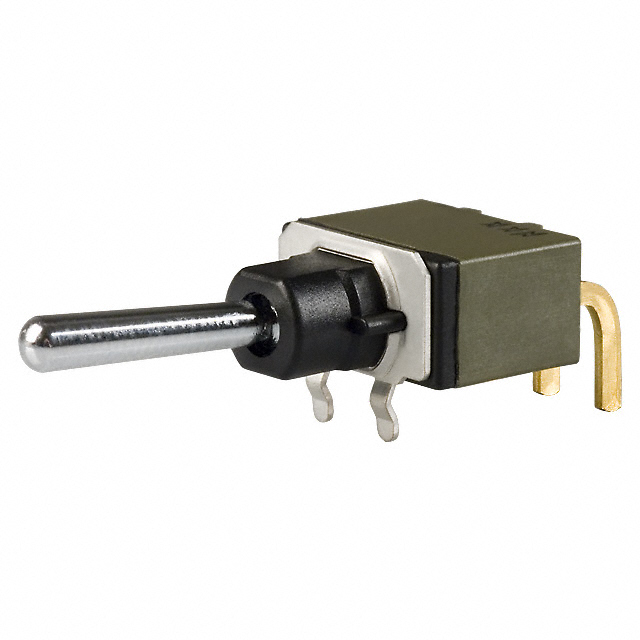

NKK Switches M2T12SA5G30	50000 Cycles	Brass Nickel Plated	Right Angle Through Hole	85 °C	-30 ░C	PC Pin	SPDT	0.4 VA	On-On	0.5 in	28 V	Unthreaded	Non-Illuminated	Process Sealed	Standard Round	28 V
NKK Switches M2T12SA5A03/UC	25000 Steps	Brass Chrome Plated	Through Hole	85 °C	-30 ░C	PC Pin	SPDT	4 A 6 A	On-On	0.5 in	30 V	Unthreaded	Non-Illuminated	Process Sealed	Standard Round	125 V
NKK Switches M2T12SA5A03	25000 Steps	Brass Nickel Plated	Through Hole	85 °C	-30 ░C	PC Pin	SPDT	4 A 6 A	On-On	0.5 in	28 V	Unthreaded		Process Sealed	Standard Round	125 V
