042819 Series

Manufacturer: Molex

Catalog

CONN HEADER VERT 4POS 10MM

Part	Contact Type	Insulation Color	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post	Number of Positions	Shrouding	Mounting Type	Material Flammability Rating	Fastening Type	Insulation Material	Number of Rows	Style	Contact Shape	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Applications	Contact Material	Contact Finish - Post	Number of Positions Loaded	Connector Type	Pitch - Mating	Pitch - Mating	Termination	Contact Finish - Mating

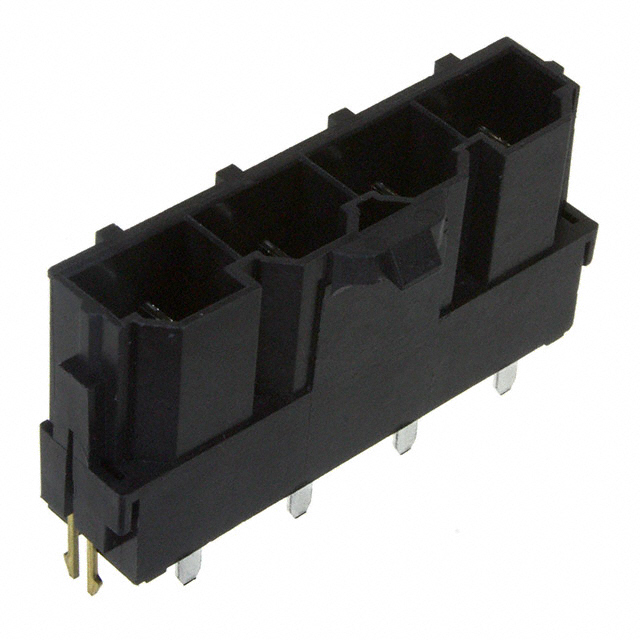

Molex 0428194212	Male Blade	Black	21 mm	0.827 "	3.5 mm	0.138 in	4	Shrouded - 4 Wall	Through Hole	UL94 V-0	Locking Ramp	Glass Filled Nylon 4/6 Polyamide (PA46)	1	Board to Cable/Wire	Rectangular	2.54 µm	100 µin	2.54 çm	100 çin	Automotive General Purpose Industrial Medical Telecommunications	Copper Zirconium Alloy	Tin	All	Header	10 mm	0.394 in	Solder
Molex 0428195223	Male Blade	Black	21 mm	0.827 "	5.11 mm	0.201 in		Shrouded - 4 Wall	Through Hole	UL94 V-0	Locking Ramp	Glass Filled Nylon 4/6 Polyamide (PA46)	1	Board to Cable/Wire	Rectangular	2.54 µm	100 µin	0.76 Ám	30 Áin	Automotive General Purpose Industrial Medical Telecommunications	Copper Zirconium Alloy	Tin	All	Header	10 mm	0.394 in	Solder	Gold

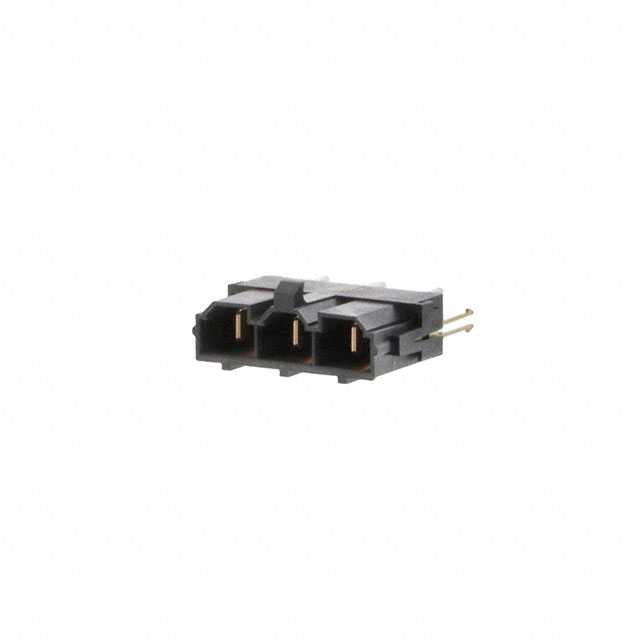

Molex 0428193243	Male Blade	Black	21 mm	0.827 "	8.3 mm	0.327 "		Shrouded - 4 Wall	Through Hole	UL94 V-0	Locking Ramp	Glass Filled Nylon 4/6 Polyamide (PA46)	1	Board to Cable/Wire	Rectangular	2.54 µm	100 µin	0.76 Ám	30 Áin	Automotive General Purpose Industrial Medical Telecommunications	Copper Zirconium Alloy	Tin	All	Header	10 mm	0.394 in	Solder	Gold
Molex 0428195232	Male Blade	Black	21 mm	0.827 "	5.11 mm	0.201 in		Shrouded - 4 Wall	Through Hole	UL94 V-0	Locking Ramp	Glass Filled Nylon 4/6 Polyamide (PA46)	1	Board to Cable/Wire	Rectangular	2.54 µm	100 µin	2.54 çm	100 çin	Automotive General Purpose Industrial Medical Telecommunications	Copper Zirconium Alloy	Tin	All	Header	10 mm	0.394 in	Solder
Molex 0428195243	Male Blade	Black	21 mm	0.827 "	8.3 mm	0.327 "		Shrouded - 4 Wall	Through Hole	UL94 V-0	Locking Ramp	Glass Filled Nylon 4/6 Polyamide (PA46)	1	Board to Cable/Wire	Rectangular	2.54 µm	100 µin	0.76 Ám	30 Áin	Automotive General Purpose Industrial Medical Telecommunications	Copper Zirconium Alloy	Tin	All	Header	10 mm	0.394 in	Solder	Gold
Molex 0428195212	Male Blade	Black	21 mm	0.827 "	3.5 mm	0.138 in		Shrouded - 4 Wall	Through Hole	UL94 V-0	Locking Ramp	Glass Filled Nylon 4/6 Polyamide (PA46)	1	Board to Cable/Wire	Rectangular	2.54 µm	100 µin	2.54 çm	100 çin	Automotive General Purpose Industrial Medical Telecommunications	Copper Zirconium Alloy	Tin	All	Header	10 mm	0.394 in	Solder

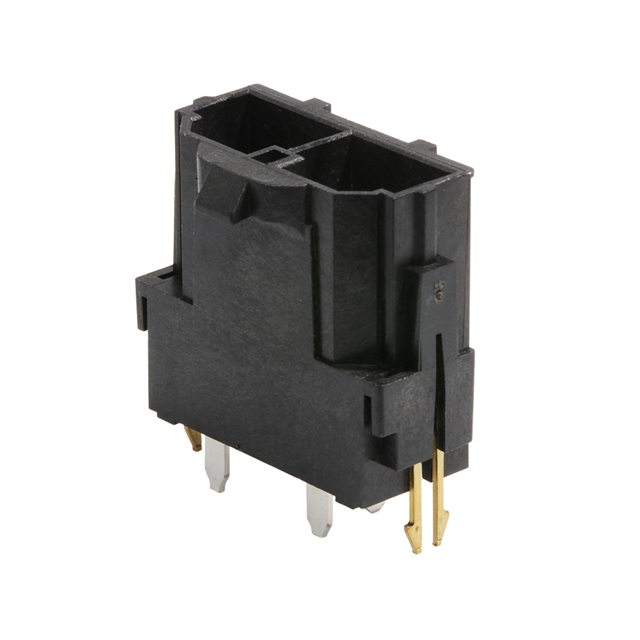

Molex 0428192242	Male Blade	Black	21 mm	0.827 "	8.3 mm	0.327 "	2	Shrouded - 4 Wall	Through Hole	UL94 V-0	Locking Ramp	Glass Filled Nylon 4/6 Polyamide (PA46)	1	Board to Cable/Wire	Rectangular	2.54 µm	100 µin	2.54 çm	100 çin	Automotive General Purpose Industrial Medical Telecommunications	Copper Zirconium Alloy	Tin	All	Header	10 mm	0.394 in	Solder
Molex 0428194222	Male Blade	Black	21 mm	0.827 "	5.11 mm	0.201 in	4	Shrouded - 4 Wall	Through Hole	UL94 V-0	Locking Ramp	Glass Filled Nylon 4/6 Polyamide (PA46)	1	Board to Cable/Wire	Rectangular	2.54 µm	100 µin	2.54 çm	100 çin	Automotive General Purpose Industrial Medical Telecommunications	Copper Zirconium Alloy	Tin	All	Header	10 mm	0.394 in	Solder
Molex 0428194223	Male Blade	Black	21 mm	0.827 "	5.11 mm	0.201 in	4	Shrouded - 4 Wall	Through Hole	UL94 V-0	Locking Ramp	Glass Filled Nylon 4/6 Polyamide (PA46)	1	Board to Cable/Wire	Rectangular	2.54 µm	100 µin	0.76 Ám	30 Áin	Automotive General Purpose Industrial Medical Telecommunications	Copper Zirconium Alloy	Tin	All	Header	10 mm	0.394 in	Solder	Gold

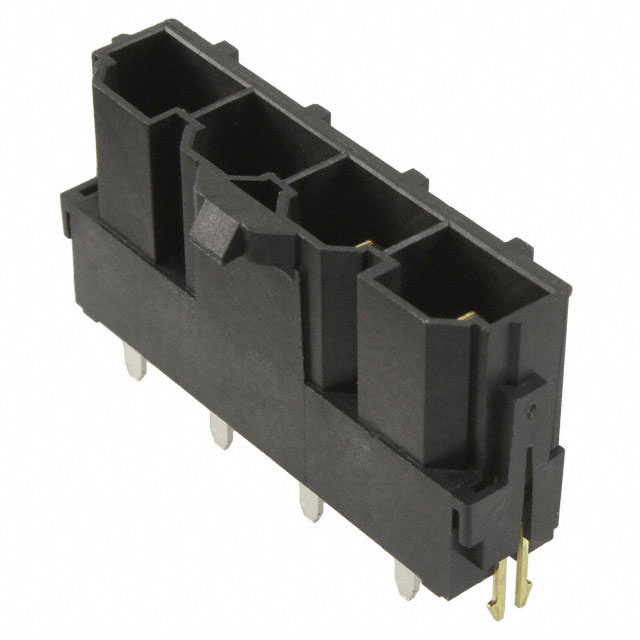

Molex 0428194213	Male Blade	Black	21 mm	0.827 "	3.5 mm	0.138 in	4	Shrouded - 4 Wall	Through Hole	UL94 V-0	Locking Ramp	Glass Filled Nylon 4/6 Polyamide (PA46)	1	Board to Cable/Wire	Rectangular	2.54 µm	100 µin	0.76 Ám	30 Áin	Automotive General Purpose Industrial Medical Telecommunications	Copper Zirconium Alloy	Tin	All	Header	10 mm	0.394 in	Solder	Gold
