FF1000 Series

Manufacturer: INFINEON

Catalog

IGBT MOD 1700V 1390A AGPRIME3-1

Part	Vce(on) (Max) @ Vge, Ic	Input	Configuration	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Current - Collector (Ic) (Max) [Max]	Current - Collector Cutoff (Max) [Max]	Package / Case	Supplier Device Package	Input Capacitance (Cies) @ Vce	Mounting Type	NTC Thermistor	Power - Max [Max]
INFINEON FF1000R17IE4S4BOSA2	2.45 V	Standard	2 Independent	-40 C	150 °C	1700 V	1390 A	5 mA	Module	AG-PRIME3-1	81 pF	Chassis Mount		6250 W

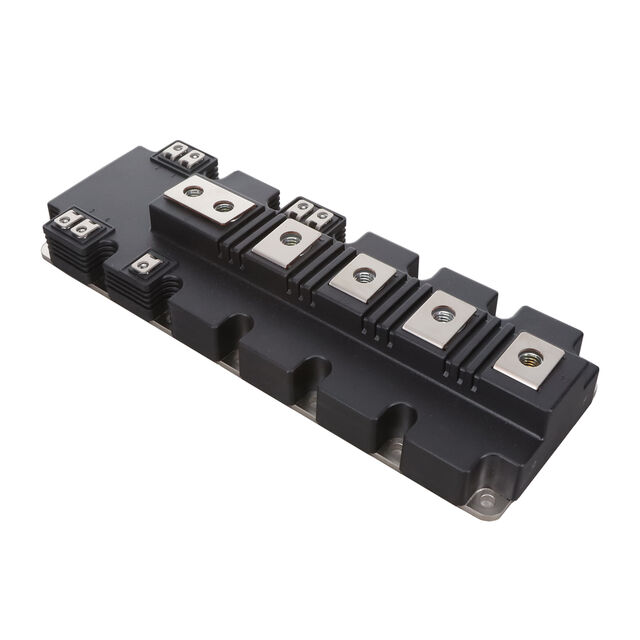

INFINEON FF1000R17IE4DB2BOSA1	2.45 V	Standard	2 Independent	-40 C	150 °C	1700 V		5 mA	Module	Module	81 nF	Chassis Mount		6250 W
