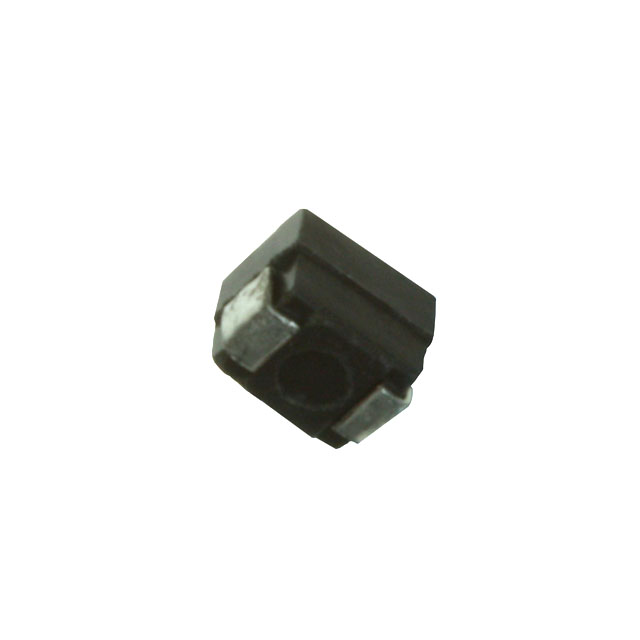

1210/R Series

Manufacturer: Delevan

Catalog

FIXED IND 33UH 182MA 5.6 OHM SMD

Part	Supplier Device Package	Inductance Frequency - Test	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	DC Resistance (DCR)	Mounting Type	Frequency - Self Resonant	Material - Core	Current Rating (Amps)	Shielding	Tolerance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Package / Case	Q @ Freq	Inductance	Frequency - Self Resonant [custom]	DC Resistance (DCR) [Max]	Q @ Freq [custom]	Q @ Freq [custom]	Size / Dimension [y]
Delevan 1210R-333J	1210	2.5 MHz	0.095 in	3.25 mm	2.42 mm	0.128 in	5.6 Ohm	Surface Mount	15 MHz	Ferrite	182 mA	Unshielded	5 %	2.57 mm	0.101 in	-55 C	125 °C	1210	3225 Metric	2.5 MHz 30	33 µH
Delevan 1210-047K	1210	50 MHz	0.095 in	3.26 mm		0.128 in		Surface Mount		Phenolic	1.562 A	Unshielded	10 %	2.57 mm	0.101 in	-55 C	125 °C	1210	3225 Metric		4.7 nH	2.7 GHz	50 mOhm	40	50 MHz	2.41 mm
Delevan 1210R-392K		7.9 MHz	0.095 in	3.26 mm		0.128 in		Surface Mount	50 MHz	Ferrite	378 mA	Unshielded	10 %	2.57 mm	0.101 in	-55 C	125 °C	2-SMD			3.9 µH		1.3 Ohm	30	7.9 MHz	2.41 mm
Delevan 1210R-221H		25 MHz	0.095 in	3.26 mm		0.128 in		Surface Mount	350 MHz	Iron	805 mA	Unshielded	3 %	2.57 mm	0.101 in	-55 C	125 °C	2-SMD		30	220 nH					2.41 mm
Delevan 1210-100J	1210	50 MHz	0.095 in	3.26 mm		0.128 in	130 mOhm	Surface Mount	2 GHz	Phenolic	966 mA	Unshielded	5 %	2.57 mm	0.101 in	-55 C	125 °C	1210	3225 Metric	30 50 MHz	10 nH					2.41 mm
Delevan 1210R-082J		50 MHz	0.095 in	3.26 mm		0.128 in		Surface Mount		Phenolic	1.562 A	Unshielded	5 %	2.57 mm	0.101 in	-55 C	125 °C	2-SMD			8.2 nH	2.7 GHz	50 mOhm	40	50 MHz	2.41 mm
Delevan 1210-472J	1210	7.9 MHz	0.095 in	3.25 mm	2.42 mm	0.128 in		Surface Mount	45 MHz	Ferrite	352 mA	Unshielded	5 %	2.57 mm	0.101 in	-55 C	125 °C	1210	3225 Metric		4.7 ÁH		1.5 Ohm	30	7.9 MHz
Delevan 1210-120K	1210	50 MHz	0.095 in	3.25 mm	2.42 mm	0.128 in		Surface Mount	1.85 GHz	Phenolic	931 mA	Unshielded	10 %	2.57 mm	0.101 in	-55 C	125 °C	1210	3225 Metric	30 50 MHz	12 nH		140 mOhm
Delevan 1210-471K	1210	25 MHz	0.095 in	3.25 mm	2.42 mm	0.128 in		Surface Mount	220 MHz	Iron	644 mA	Unshielded	10 %	2.57 mm	0.101 in	-55 C	125 °C	1210	3225 Metric	30	470 nH		500 mOhm
Delevan 1210-560K	1210	50 MHz	0.095 in	3.25 mm	2.42 mm	0.128 in	330 mOhm	Surface Mount	750 MHz	Phenolic	606 mA	Unshielded	10 %	2.57 mm	0.101 in	-55 C	125 °C	1210	3225 Metric	30 50 MHz	56 nH
