GRPB112 Series

Catalog

CONN HEADER SMD 22POS 1.27MM

Part	Contact Finish Thickness - Post	Contact Material	Shrouding	Material Flammability Rating	Contact Type	Termination	Insulation Height [z]	Insulation Height [z]	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Contact Length - Mating	Contact Length - Mating	Mounting Type	Contact Finish - Mating	Fastening Type	Row Spacing - Mating	Row Spacing - Mating	Contact Shape	Contact Finish - Post	Style	Features	Number of Positions	Insulation Material	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Number of Rows [custom]	Number of Positions Loaded	Contact Length - Post [x]	Contact Length - Post	Overall Contact Length	Overall Contact Length

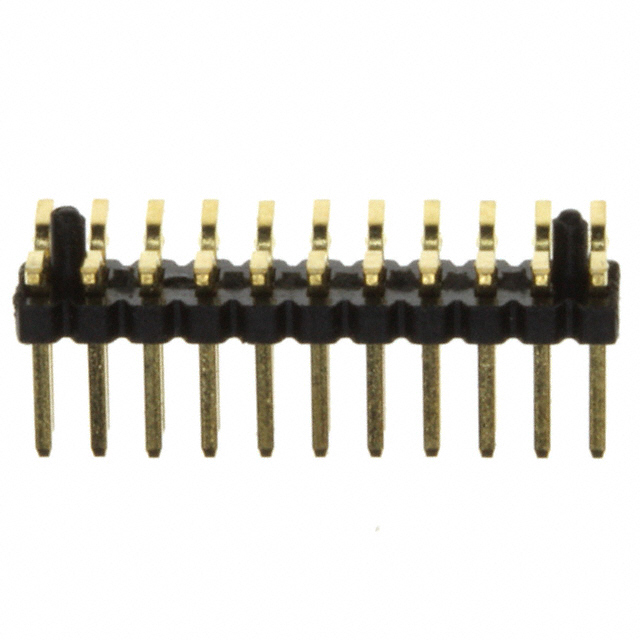

Sullins Connector Solutions GRPB112VWQP-RC	Flash	Brass	Unshrouded	UL94 V-0	Male Pin	Solder	1 mm	0.039 in	-40 C	105 ░C	Header	3 mm	0.118 in	Surface Mount	Gold	Push-Pull	0.05 in	1.27 mm	Square	Gold	Board to Board Cable	Board Guide	22	Nylon 9T Polyamide (PA9T)	Flash	1.27 mm	0.05 in	2	All
Sullins Connector Solutions GRPB112VWVN-RC	Flash	Brass	Unshrouded	UL94 V-0	Male Pin	Solder	1 mm	0.039 in	-40 C	105 ░C	Header	3 mm	0.118 in	Through Hole	Gold	Push-Pull	0.05 in	1.27 mm	Square	Gold	Board to Board Cable		22	Nylon 9T Polyamide (PA9T)	Flash	1.27 mm	0.05 in	2	All	0.091 "	2.3 mm	0.248 in	6.3 mm

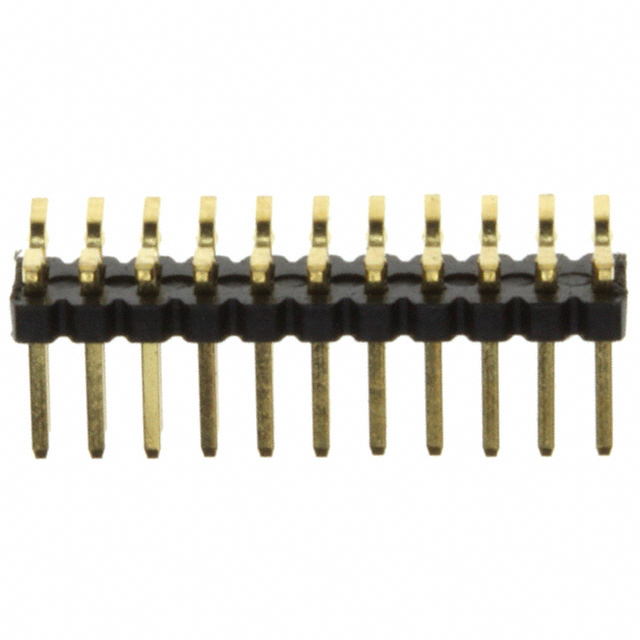

Sullins Connector Solutions GRPB112VWQS-RC	Flash	Brass	Unshrouded	UL94 V-0	Male Pin	Solder	1 mm	0.039 in	-40 C	105 ░C	Header	3 mm	0.118 in	Surface Mount	Gold	Push-Pull	0.05 in	1.27 mm	Square	Gold	Board to Board Cable		22	Nylon 9T Polyamide (PA9T)	Flash	1.27 mm	0.05 in	2	All
