9WPA0912 Series

Catalog

92X25MM, DC, 12V, SPLASH & DUST

Part	Voltage Range [Min]	Voltage Range [Max]	Current Rating (Amps)	Lifetime @ Temp.	Material - Blade	Material - Frame	Features	Noise	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated	Ingress Protection	RPM	Fan Type	Bearing Type	Static Pressure	Static Pressure	Width [x]	Air Flow	Air Flow	Size / Dimension [y]	Size / Dimension [x]	Power (Watts)

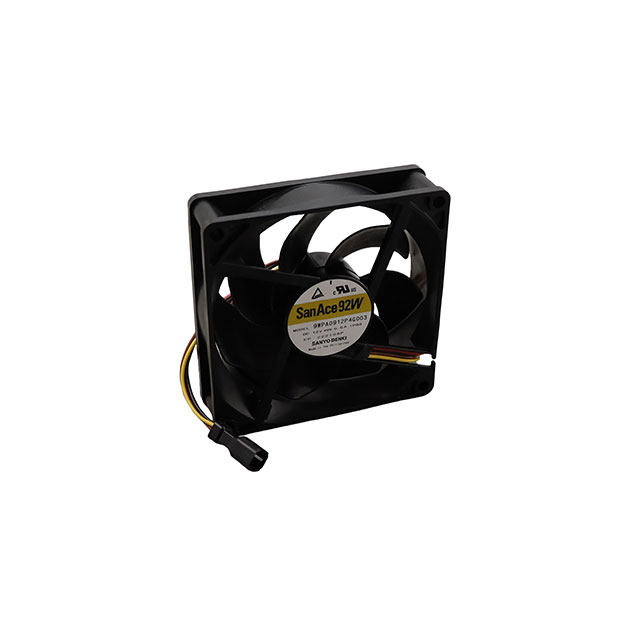

Sanyo Denki America Inc. 9WPA0912P4G003	10.8 VDC	13.2 VDC	0.5 A	40000 Hrs	Plastic	Plastic	Locked Rotor Protection PWM Control Speed Sensor (Tach)	47.7 dB(A)	4 Position Rectangular Connector	-20 ░C	70 °C	12 VDC	IP68 - Dust Tight Waterproof	5700 RPM	Tubeaxial	Ball	0.51 in H2O	127 Pa	25.2 mm	86.5 CFM	2.42 m³/min	92 mm	92 mm
Sanyo Denki America Inc. 9WPA0912P4G0011	10.8 VDC	13.2 VDC	0.5 A	40000 Hrs	Plastic	Plastic	Locked Rotor Protection PWM Control Speed Sensor (Tach)	47 dB	4 Wire Leads	-20 ░C	70 °C	12 VDC	IP68 - Dust Tight Waterproof	5700 RPM	Tubeaxial	Ball	0.51 in H2O	127 Pa	25.2 mm	86.5 CFM	2.42 m³/min	92 mm	92 mm	6 W
