BQ24030 Series
Manufacturer: Texas Instruments
Beta
⌘K
LINEAR BATTERY CHARGER LI-ION/LI-POL 1500MA 4.2V 20-PIN VQFN EP T/R
| Part | Battery Chemistry | Fault Protection | Supplier Device Package | Battery Pack Voltage | Voltage - Supply (Max) [Max] | Mounting Type | Programmable Features | Current - Charging | Charge Current - Max | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case | Interface | Number of Cells | Supplied Contents | Function | Primary Attributes | Utilized IC / Part | Embedded | Secondary Attributes | Type | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | Lithium Ion/Polymer | Over Temperature Reverse Current Short Circuit | 20-VQFN (3.5x4.5) | 4.2 V | 16 V | Surface Mount | Current Timer | Constant - Programmable | 1.5 A | -40 °C | 125 ¯C | 20-VFQFN Exposed Pad | USB | 1 | |||||||||
Texas Instruments | Lithium Ion/Polymer | Over Temperature Reverse Current Short Circuit | 20-VQFN (3.5x4.5) | 4.2 V | 16 V | Surface Mount | Current Timer | Constant - Programmable | 1.5 A | -40 °C | 125 ¯C | 20-VFQFN Exposed Pad | USB | 1 | |||||||||

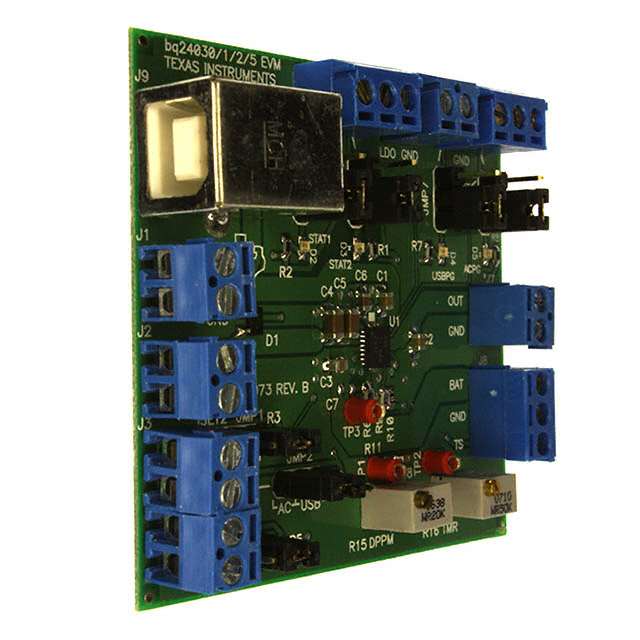

 Texas Instruments | Board(s) | Battery Charger | Li-Ion / Li-Pol (1 Cell) | BQ24030 | 3.3V LDO 6V Output Power Cell Temperature Precharge Conditioning Safety Timer Status Output | Power Management | |||||||||||||||||
Texas Instruments | Lithium Ion/Polymer | Over Temperature Reverse Current Short Circuit | 20-VQFN (3.5x4.5) | 4.1 V | 16 V | Surface Mount | Current Timer | Constant - Programmable | 1.5 A | -40 °C | 85 °C | 20-VFQFN Exposed Pad | USB | 1 | Automotive | AEC-Q100 |
