7203 Series

Catalog

KEYPAD, 4 X 4, MATRIX, POLYMER, 50 MA, 24 V

Part	Approval Agency	Operational Life	Key Color	Contact Rating @ Voltage	Legend	Output Type	Key Type	Ingress Protection	Termination Style	Mounting Type	Number of Keys	Legend Type	Operating Temperature [Min]	Operating Temperature [Max]	Legend Color	Switch Type	Matrix (Columns x Rows) [custom]	Matrix (Columns x Rows) [custom]	Illumination	Illumination Voltage (Nominal)

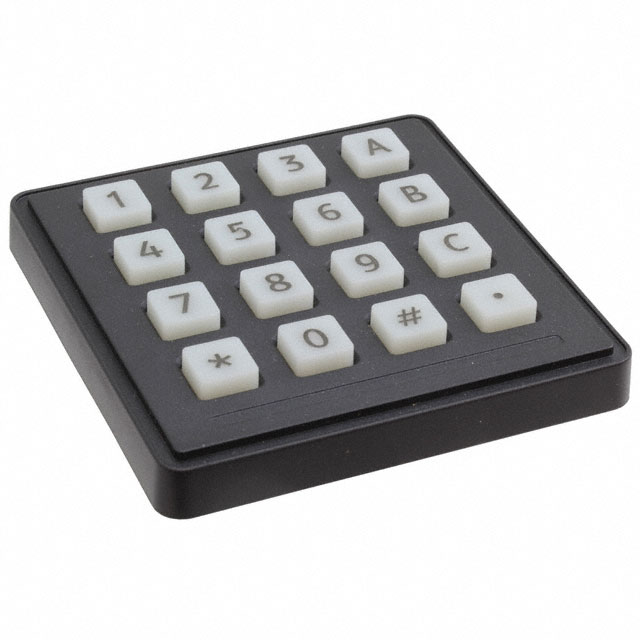

STORM INTERFACE 7203-16T0203	CE	2000000 Cycles	White	0.05 A 24 VDC	A ~ C	Matrix	Polymer	IP65 - Dust Tight Water Resistant	Pin Header	Panel Mount Front or Rear	16	Fixed	-20 ░C	60 °C	Black	Conductive Rubber	4	4	Non-Illuminated
STORM INTERFACE 7203-12T0203	CE	2000000 Cycles	White	0.05 A 24 VDC	Telephone Format	Matrix	Polymer	IP65 - Dust Tight Water Resistant	Pin Header	Panel Mount Front or Rear	12	Fixed	-20 ░C	60 °C	Black	Conductive Rubber	3	4	Non-Illuminated

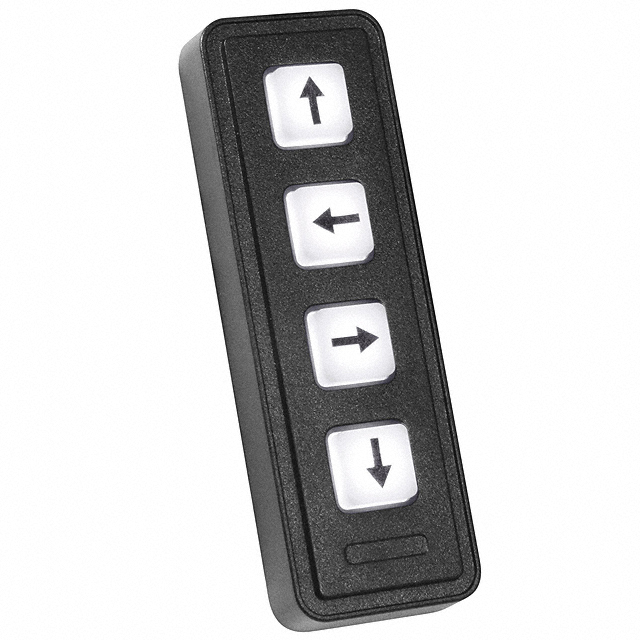

STORM INTERFACE 7203-04CW203	CE	2000000 Cycles	White	0.05 A 24 VDC	Arrows	Matrix	Polymer	IP65 - Dust Tight Water Resistant	Pin Header	Panel Mount Front or Rear	4	Fixed	-20 ░C	60 °C	Black	Conductive Rubber			Illuminated - White	5 VDC

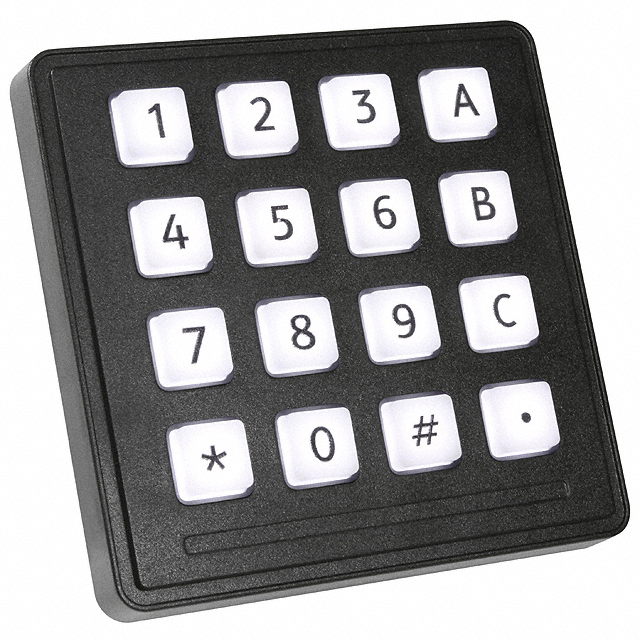

STORM INTERFACE 7203-16TW203	CE	2000000 Cycles	White	0.05 A 24 VDC	A ~ C	Matrix	Polymer	IP65 - Dust Tight Water Resistant	Pin Header	Panel Mount Front or Rear	16	Fixed	-20 ░C	60 °C	Black	Conductive Rubber	4	4	Illuminated - White	5 VDC

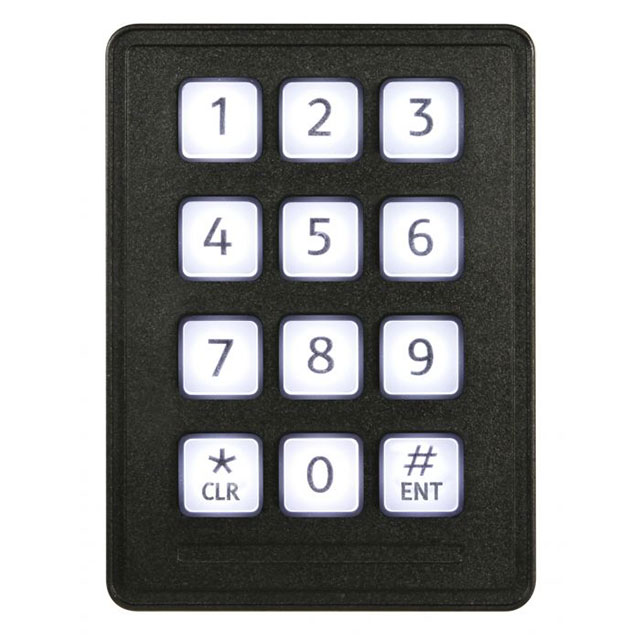

STORM INTERFACE 7203-12TW203	CE	2000000 Cycles	White	0.05 A 24 VDC	Telephone Format	Matrix	Polymer	IP65 - Dust Tight Water Resistant	Pin Header	Panel Mount Front or Rear	12	Fixed	-20 ░C	60 °C	Black	Conductive Rubber	3	4	Illuminated - White	5 VDC

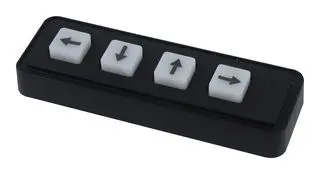

STORM INTERFACE 7203-04C0203	CE	2000000 Cycles	White	0.05 A 24 VDC	Arrows	Matrix	Polymer	IP65 - Dust Tight Water Resistant	Pin Header	Panel Mount Front or Rear	4	Fixed	-20 ░C	60 °C	Black	Conductive Rubber			Non-Illuminated
