Bipolar Module-Rectifier+Brake V2-Pk
Description
AI
The Three Phase Bridge plus Brake Unit series comes with IGBT and freewheeling diode in various power classes.
Beta
⌘K
Bipolar Module-Rectifier+Brake V2-Pk
Bipolar Module-Rectifier+Brake V2-Pk
| Part | Diode Type | Mounting Type | Voltage - Forward (Vf) (Max) @ If | Current - Average Rectified (Io) | Package / Case | Technology | Supplier Device Package | Voltage - Peak Reverse (Max) | Current - Reverse Leakage @ Vr | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Forward (Vf) (Max) @ If [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

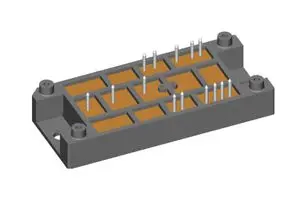

 LITTELFUSE | Three Phase (Braking) | Through Hole | 2.75 V | 180 A | Module | Standard | Module | 1.6 kV | 100 µA | -40 °C | 150 °C | |
 LITTELFUSE | Three Phase (Braking) | Through Hole | 2.75 V | 180 A | Module | Standard | Module | 1.6 kV | 100 µA | -40 °C | 150 °C | |
 LITTELFUSE | Three Phase (Braking) | Chassis Mount | 188 A | V2-PAK | Standard | V2-PAK | 1.2 kV | 500 µA | -40 °C | 150 °C | 2.7 V |
