HE10HWPR Series

Catalog

EUROSTRIP 6P 15MM 50A 600V 18-8A

Part	Terminal Screw Material	Mounting Type	Material - Insulation	Terminal Screw Finish	Operating Temperature (Min)	Operating Temperature (Max)	Material Flammability Rating	Pitch	Number of Rows	Top Termination	Terminal Block Type	Color	Bottom Termination	Barrier Type	Voltage Rating	Number of Wire Entries	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Number of Circuits	Current Rating
Altech Corporation HE10HWPR/06	Steel	Chassis Panel	Nylon 6/6 PA66 Polyamide	Blue Chromate	-30 °C	125 °C	UL94 V-0	0.591 in	2	Screws	Eurostyle Terminal Strip	White	Closed	Enclosed	600 V	12	18 AWG	8 AWG	6	50 A
Altech Corporation HE10HWPR/03	Steel	Chassis Panel	Nylon 6/6 PA66 Polyamide	Blue Chromate	-30 °C	125 °C	UL94 V-0	0.594 in	2	Screws	Eurostyle Terminal Strip	White	Closed	Enclosed	600 V	6	18 AWG	8 AWG	3	50 A
Altech Corporation HE10HWPR/12								0.591 in	2	Screws	Eurostyle Terminal Strip	White	Closed	Enclosed	600 V	24	18 AWG	8 AWG	12	50 A

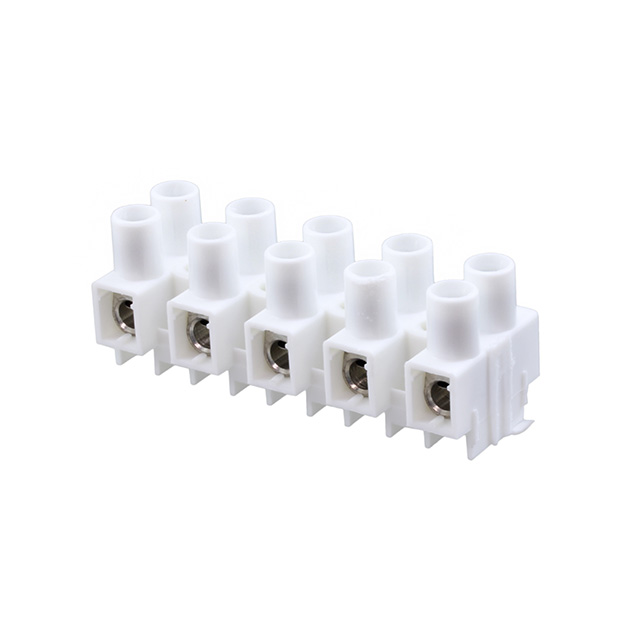

Altech Corporation HE10HWPR/05	Steel	Chassis Panel	Nylon 6/6 PA66 Polyamide	Blue Chromate	-30 °C	125 °C	UL94 V-0	0.591 in	2	Screws	Eurostyle Terminal Strip	White	Closed	Enclosed	600 V	10	18 AWG	8 AWG	5	50 A

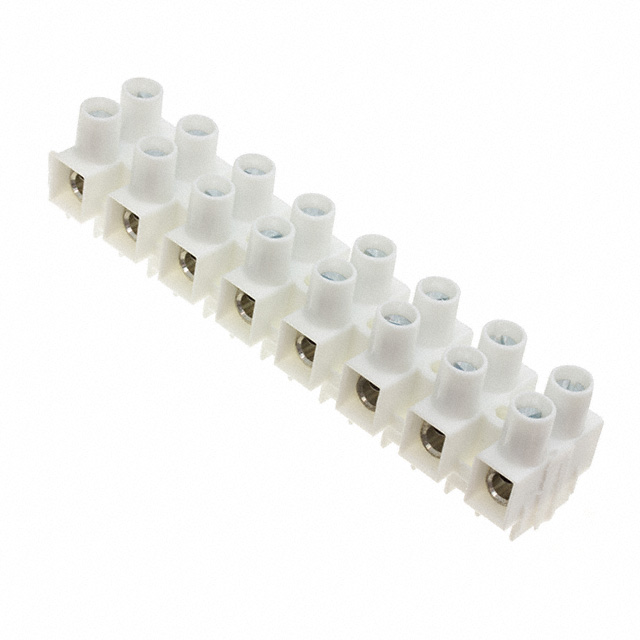

Altech Corporation HE10HWPR/08	Steel	Chassis Panel	Nylon 6/6 PA66 Polyamide	Blue Chromate	-30 °C	125 °C	UL94 V-0	0.591 in	2	Screws	Eurostyle Terminal Strip	White	Closed	Enclosed	600 V	16	18 AWG	8 AWG	8	50 A
Altech Corporation HE10HWPR/09								0.591 in	2	Screws	Eurostyle Terminal Strip	White	Closed	Enclosed	600 V	18	18 AWG	8 AWG	9	50 A
Altech Corporation HE10HWPR/04	Steel	Chassis Panel	Nylon 6/6 PA66 Polyamide	Blue Chromate	-30 °C	125 °C	UL94 V-0	0.591 in	2	Screws	Eurostyle Terminal Strip	White	Closed	Enclosed	600 V	8	18 AWG	8 AWG	4	50 A
Altech Corporation HE10HWPR/02	Steel	Chassis Panel	Nylon 6/6 PA66 Polyamide	Blue Chromate	-30 °C	125 °C	UL94 V-0	0.591 in	2	Screws	Eurostyle Terminal Strip	White	Closed	Enclosed	600 V	4	18 AWG	8 AWG	2	50 A
Altech Corporation HE10HWPR/11
Altech Corporation HE10HWPR/10
