NCV97310 Series
Manufacturer: ON Semiconductor
Beta
⌘K

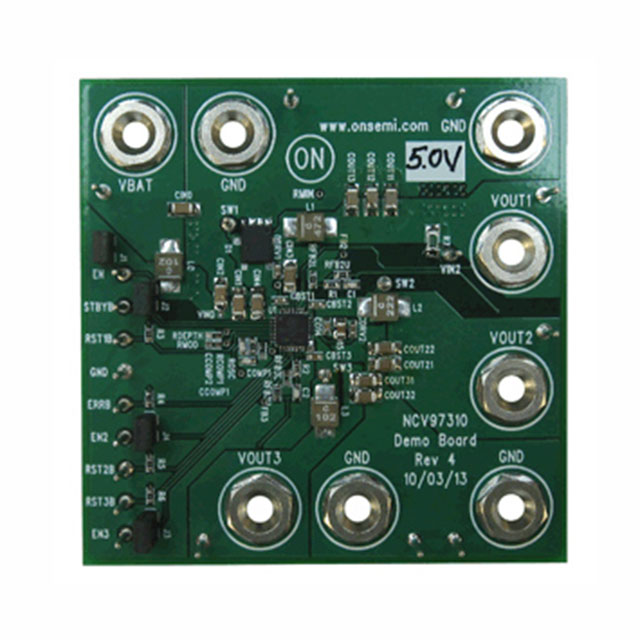

EVAL BOARD NCV97310MW50G
| Part | Supplied Contents | Voltage - Input [Max] | Voltage - Input [Min] | Current - Output | Voltage - Output | Frequency - Switching | Main Purpose | Regulator Topology | Board Type | Outputs and Type | Outputs and Type | Utilized IC / Part | Grade | w/LED Driver | Supplier Device Package | Package / Case | Voltage/Current - Output 1 [custom] | Voltage/Current - Output 1 [custom] | Voltage - Supply [Min] | Voltage - Supply [Max] | Qualification | Frequency - Switching [Min] | Frequency - Switching [Max] | w/Sequencer | w/Supervisor | Mounting Type | Topology | Voltage/Current - Output 2 [Max] | Voltage/Current - Output 2 [Min] | Voltage/Current - Output 2 | Operating Temperature [Min] | Operating Temperature [Max] | Number of Outputs | Voltage/Current - Output 3 [Max] | Voltage/Current - Output 3 | Voltage/Current - Output 3 [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ON Semiconductor | Board(s) | 36 V | 6 V | 1.5 A 3 A | 1.2 V 3.3 V 5 V | 2 MHz | DC/DC Step Down with LDO | Buck | Fully Populated | Non-Isolated | 3 | NCV97310 | ||||||||||||||||||||||||
 ON Semiconductor | Automotive | 32-QFN (5x5) | 32-VFQFN Exposed Pad | 3.3 V | 3 A | 4.1 V | 18 V | AEC-Q100 | 2 MHz | 2.6 MHz | Surface Mount | Linear (LDO) (2) Step-Down (Buck) Synchronous (2) | 3.3 V | 1.2 V | 1.5 A | -40 °C | 105 ░C | 4 | 3.3 V | 1.5 A | 1.2 V |
