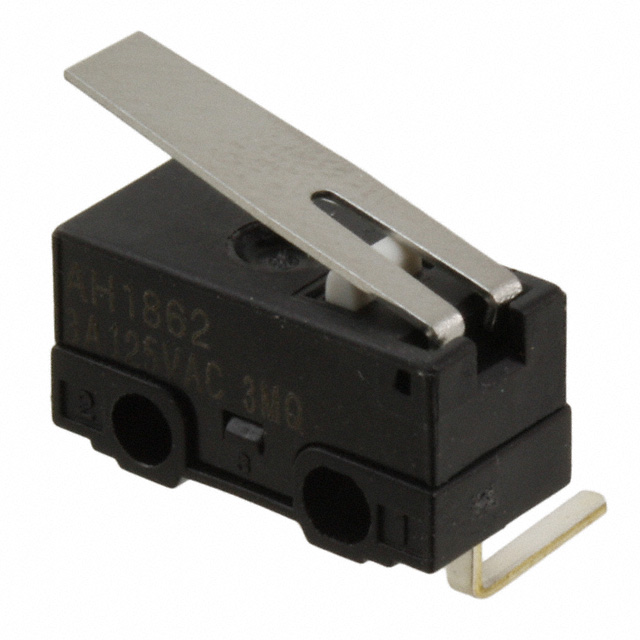

AH186 Series
Manufacturer: Panasonic Electronic Components
Beta
⌘K
SWITCH SNAP ACTION SPDT 3A 125V
| Part | Features | Circuit | Voltage Rating - AC | Differential Travel | Differential Travel | Operating Position | Operating Position | Mechanical Life | Release Force | Operating Force | Overtravel [custom] | Overtravel [custom] | Switch Function | Termination Style | Current Rating (Amps) | Actuator Type | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Electrical Life | Pretravel | Pretravel | Voltage Rating - DC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Electronic Components | Actuator Mounted Left Side | SPDT | 125 V | 0.5 mm | 0.02 in | 0.268 in | 6.8 mm | 500000 Cycles | 5.099 gf | 50 gf | 0.022 " | 0.55 mm | On-Mom | PC Pin | 2 A 3 A | Lever Straight | Right Angle Through Hole | 85 °C | -25 °C | 30000 Cycles | 2.1 mm | 0.083 in | 30 V |
