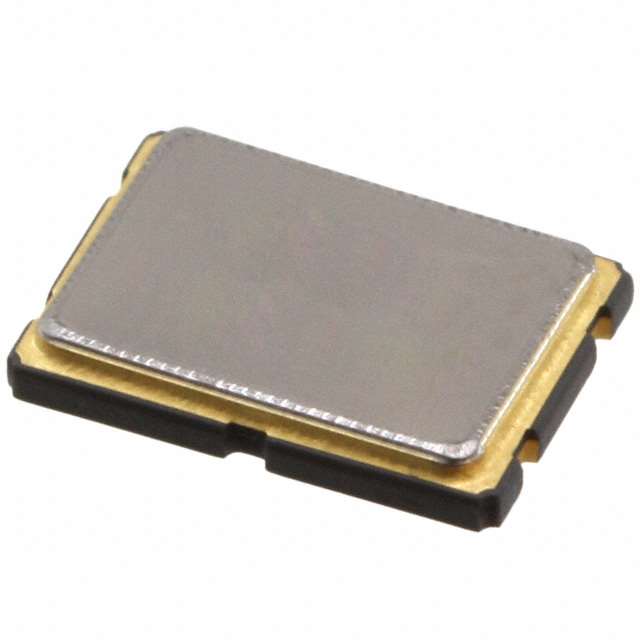

CSM-8Q Series
Manufacturer: ECS Inc.
Beta
⌘K
CRYSTALS 24.000MHZ 18PF 100PPM -40 TO 125C
| Part | Frequency Tolerance | Frequency | Supplier Device Package | Package / Case | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Frequency Stability | Ratings | Mounting Type | Operating Mode | ESR (Equivalent Series Resistance) | Load Capacitance | Operating Temperature [Max] | Operating Temperature [Min] | Height - Seated (Max) [Max] [z] | Height - Seated (Max) | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ECS Inc. | 30 ppm | 24 MHz | 4-SMD (7x5) | 4-SMD No Lead | 5 mm | 7 mm | 0.197 " | 0.276 " | 100 ppm | AEC-Q200 | Surface Mount | Fundamental | 40 Ohms | 18 pF | 125 °C | -40 C | 0.051 in | 1.3 mm | MHz Crystal |
