1744056 Series

Catalog

CONN HEADER R/A 5POS 3.96MM

Part	Applications	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Rows	Number of Positions Loaded	Insulation Height	Insulation Height	Number of Positions	Current Rating (Amps)	Connector Type	Termination	Contact Length - Post	Contact Length - Post	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Fastening Type	Style	Shrouding	Contact Finish - Post	Contact Type	Pitch - Mating	Pitch - Mating	Voltage Rating	Mounting Type	Material Flammability Rating	Contact Length - Mating	Contact Length - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material

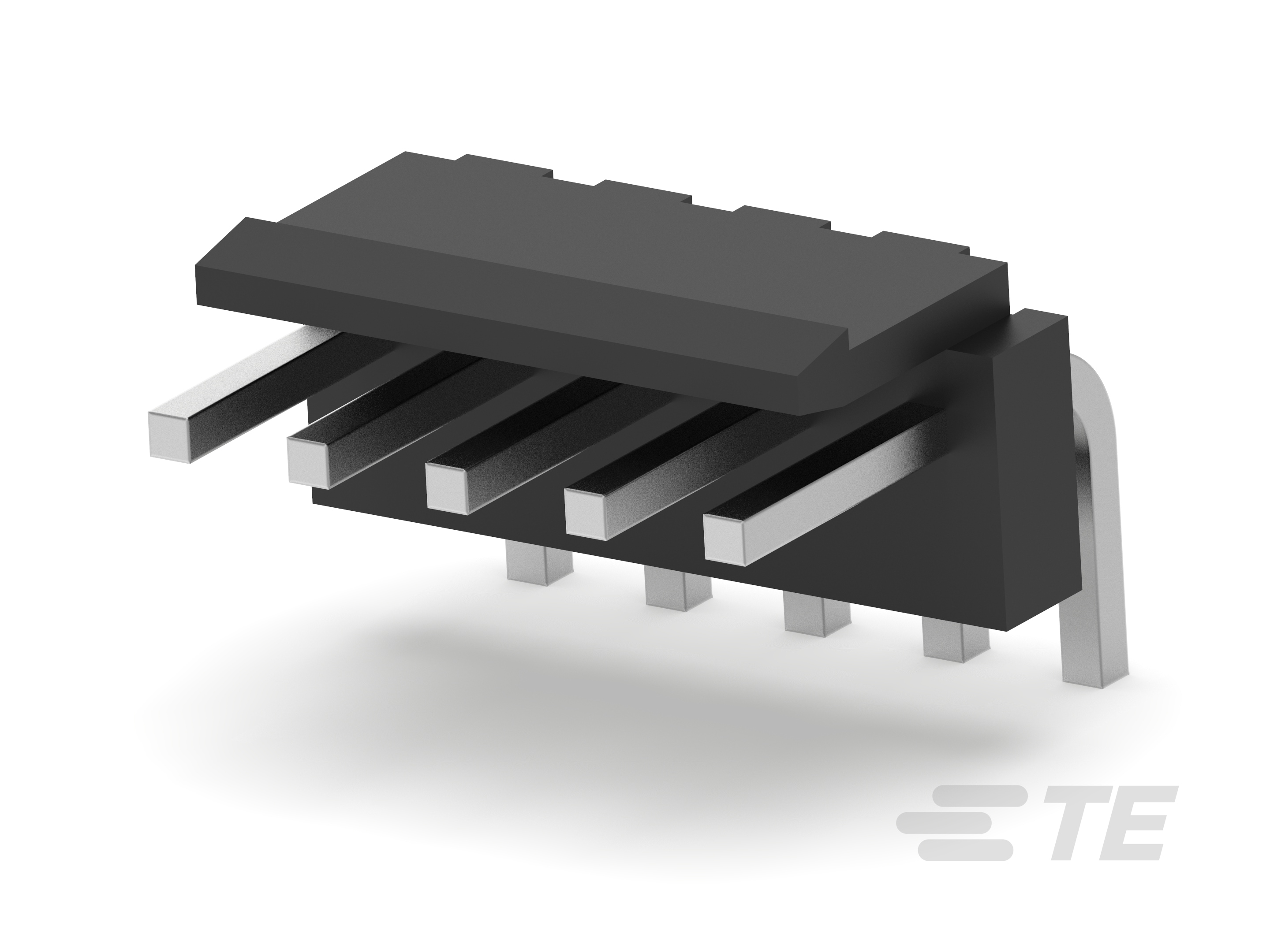

TE Connectivity AMP Connectors 1744056-5	General Purpose Industrial Lighting	120 Áin	3.05 Ám	1	All	8.61 mm	0.339 "	5	7.5 A	Header	Solder	0.142 in	3.6 mm	Square	120 µin	3.05 µm	Black	Locking Ramp	Board to Cable/Wire	Shrouded - 1 Wall	Tin	Male Pin	3.96 mm	0.156 in	250 VAC	Right Angle Through Hole	UL94 V-0	8.59 mm	0.338 in	105 ░C	-25 °C	Brass

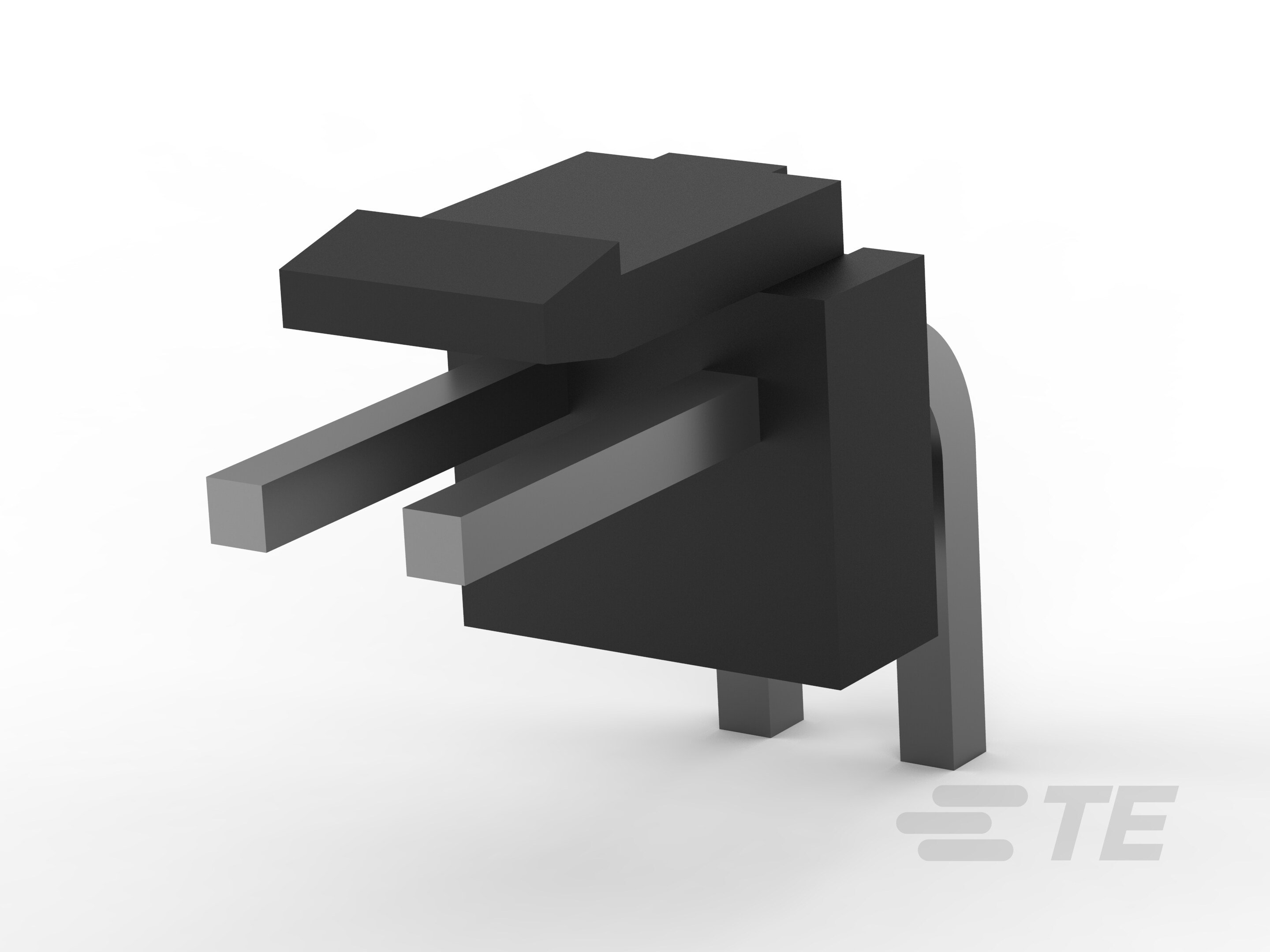

TE Connectivity AMP Connectors 8-1744056-2	General Purpose Industrial Lighting	120 Áin	3.05 Ám	1	All	8.61 mm	0.339 "	2	7.5 A	Header	Solder	0.142 in	3.6 mm	Square	120 µin	3.05 µm	Black	Locking Ramp	Board to Cable/Wire	Shrouded - 1 Wall	Tin	Male Pin	3.96 mm	0.156 in	250 VAC	Right Angle Through Hole	UL94 V-0	8.59 mm	0.338 in	105 ░C	-25 °C	Brass
