RLP73N1 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

RES 0.47 OHM 1% 1/8W 0603

Part	Package / Case	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Resistance	Composition	Number of Terminations [custom]	Power (Watts)	Power (Watts)	Features	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Tolerance	Temperature Coefficient	Size / Dimension [y]	Supplier Device Package
TE Connectivity AMP Connectors RLP73N1JR47FTDF	1608 Metric	0603	0.55 mm	0.022 in	470 mOhms	Thick Film	2	0.125 W	0.125 W	Current Sense	0.031 in	1.6 mm	0.8 mm	0.063 "	155 C	-55 C	1 %	300 ppm/°C
TE Connectivity AMP Connectors RLP73N1JR36JTD	1608 Metric	0603	0.55 mm	0.022 in	360 mOhms	Thick Film	2	0.125 W	0.125 W	Current Sense	0.031 in	1.6 mm	0.8 mm	0.063 "	155 C	-55 C	5 %	300 ppm/°C

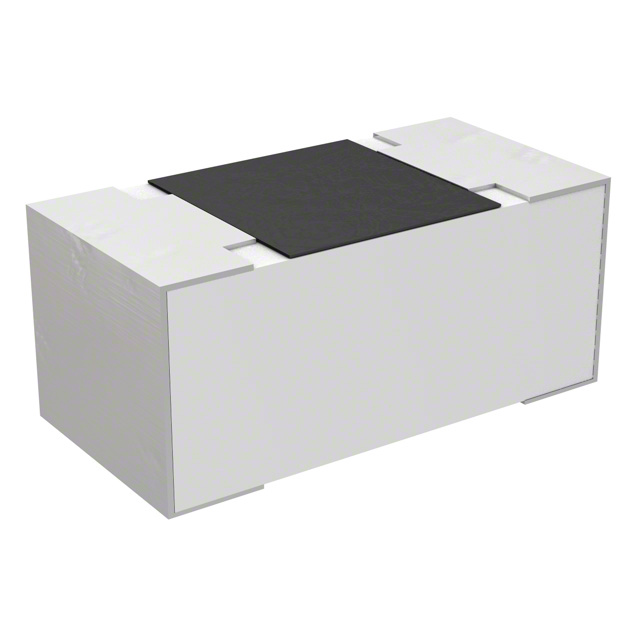

TE Connectivity AMP Connectors RLP73N1ER43JTD		0402 (1005 Metric)	0.43 mm	0.017 in	430 mOhms	Thick Film	2	0.125 W	0.125 W	Current Sense	0.02 in	1 mm		0.039 "	155 C	-55 C	5 %	300 ppm/°C	0.5 mm	0402
TE Connectivity AMP Connectors RLP73N1ER13JTD		0402 (1005 Metric)	0.43 mm	0.017 in	0.13 Ohms	Thick Film	2	0.125 W	0.125 W	Current Sense	0.02 in	1 mm		0.039 "	155 C	-55 C	5 %	300 ppm/°C	0.5 mm	0402
TE Connectivity AMP Connectors RLP73N1JR18JTD	1608 Metric	0603	0.55 mm	0.022 in	0.18 Ohms	Thick Film	2	0.125 W	0.125 W	Current Sense	0.031 in	1.6 mm	0.8 mm	0.063 "	155 C	-55 C	5 %	300 ppm/°C
TE Connectivity AMP Connectors RLP73N1ER27FTDF		0402 (1005 Metric)	0.43 mm	0.017 in	270 mOhms	Thick Film	2	0.125 W	0.125 W	Current Sense	0.02 in	1 mm		0.039 "	155 C	-55 C	1 %	300 ppm/°C	0.5 mm	0402
TE Connectivity AMP Connectors RLP73N1JR33FTDF	1608 Metric	0603	0.55 mm	0.022 in	330 mOhms	Thick Film	2	0.125 W	0.125 W	Current Sense	0.031 in	1.6 mm	0.8 mm	0.063 "	155 C	-55 C	1 %	300 ppm/°C
TE Connectivity AMP Connectors RLP73N1JR11FTDF	1608 Metric	0603	0.55 mm	0.022 in	110 mOhms	Thick Film	2	0.125 W	0.125 W	Current Sense	0.031 in	1.6 mm	0.8 mm	0.063 "	155 C	-55 C	1 %	300 ppm/°C
TE Connectivity AMP Connectors RLP73N1JR12JTD	1608 Metric	0603	0.55 mm	0.022 in	0.12 Ohms	Thick Film	2	0.125 W	0.125 W	Current Sense	0.031 in	1.6 mm	0.8 mm	0.063 "	155 C	-55 C	5 %	300 ppm/°C
TE Connectivity AMP Connectors RLP73N1JR22FTDF	1608 Metric	0603	0.55 mm	0.022 in	220 mOhms	Thick Film	2	0.125 W	0.125 W	Current Sense	0.031 in	1.6 mm	0.8 mm	0.063 "	155 C	-55 C	1 %	300 ppm/°C
