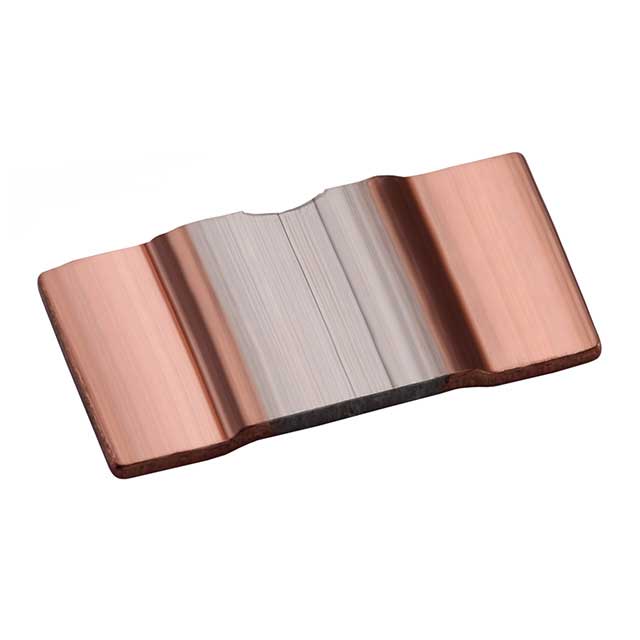

TLRS1575 Series

Catalog

CURRENT SENSE RESISTORS - SMD TLRS1575 4.0W R002 1% 120PPM 2KRL

Part	Temperature Coefficient	Features	Tolerance	Power (Watts)	Supplier Device Package	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Composition	Height - Seated (Max) [Max]	Height - Seated (Max)	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Number of Terminations [custom]	Resistance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
TE Connectivity AMP Connectors TLRS157540QR002FTDG	120 ppm/°C	Current Sense Moisture Resistant	1 %	4 W	1575	15.2 mm	7.5 mm	0.295 in	0.598 "	Metal Element	0.02 in	0.5 mm	170 °C	-55 C	Nonstandard	2	2 mOhms
TE Connectivity AMP Connectors TLRS157560QR001FTDG	120 ppm/°C	Current Sense Moisture Resistant	1 %	5 W	1575	15.2 mm	7.5 mm	0.295 in	0.598 "	Metal Element			170 °C	-55 C	Nonstandard	2	1 mOhms	0.95 mm	0.037 in
