0997-1 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

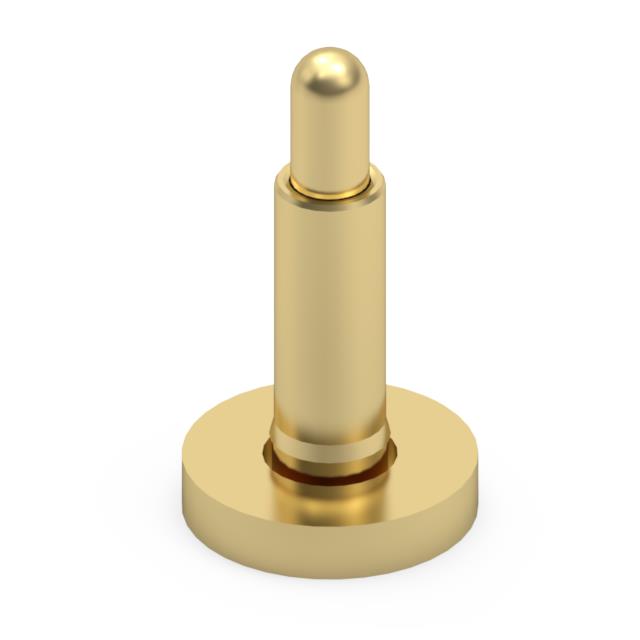

CONTACT SPRING LOADED SMD GOLD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Maximum Working Height [Max] | Maximum Working Height [Max] | Contact Material | Operating Force - Mid Compression | Mating Cycles | Recommended Working Height | Recommended Working Height | Current Rating (Amps) | Pad Layout Dimension [diameter] | Pad Layout Dimension [diameter] | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Plunger Size [diameter] | Plunger Size [diameter] | Mounting Type | Minimum Working Height | Minimum Working Height | Contact Finish | Operating Force - Initial |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 0.275 in | 6.99 mm | Brass Alloy | 60 gf | 1000000 | 6.29 mm | 0.248 " | 5.2 A | 0.159 in | 4.04 mm | 20 µin | 0.51 µm | Sleeve & Plunger (Pogo Pins) | 0.042 in | 1.07 mm | Surface Mount | 5.6 mm | 0.22 in | Gold | 10 gf |
