NJW4184 Series
Manufacturer: Nisshinbo Micro Devices Inc.
Beta
⌘K
IC
| Part | Voltage Dropout (Max) | Current - Output | Mounting Type | Output Configuration | Voltage - Output (Min/Fixed) | Number of Regulators | Current - Quiescent (Iq) | Supplier Device Package | PSRR | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Protection Features | Voltage - Input (Max) [Max] | Control Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nisshinbo Micro Devices Inc. | 0.1 V | 300 mA | Surface Mount | Positive | 3.3 V | 1 | 9 µA | TO-252-3 | 40 dB | DPAK (2 Leads + Tab) SC-63 TO-252-3 | 85 °C | -40 C | Over Current | 35 V | |
Nisshinbo Micro Devices Inc. | 0.1 V | 300 mA | Surface Mount | Positive | 2.5 V | 1 | 9 µA | TO-252-3 | 42 dB | DPAK (2 Leads + Tab) SC-63 TO-252-3 | 85 °C | -40 C | Over Current Over Temperature | 35 V | |
 Nisshinbo Micro Devices Inc. | 0.1 V | 300 mA | Surface Mount | Positive | 15 V | 1 | 12 µA | SOT-89-5 | 29 dB | SOT-89-5/6 | 85 °C | -40 C | Over Current Over Temperature | 35 V | Enable |
Nisshinbo Micro Devices Inc. | 0.1 V | 300 mA | Surface Mount | Positive | 5 V | 1 | 9 µA | TO-252-3 | 36 dB | DPAK (2 Leads + Tab) SC-63 TO-252-3 | 85 °C | -40 C | Over Current Over Temperature | 35 V | |

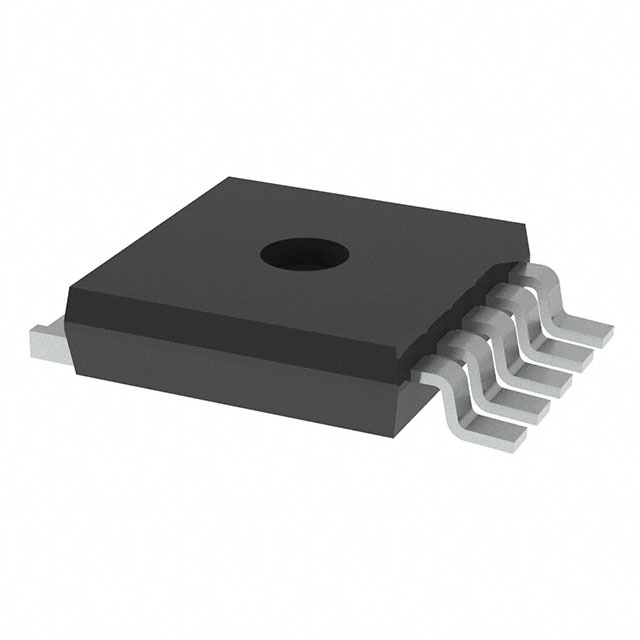

 Nisshinbo Micro Devices Inc. | 0.1 V | 300 mA | Surface Mount | Positive | 5 V | 1 | 12 µA | TO-252-5 | 36 dB | DPAK (5 Leads + Tab) TO-252-6 | 85 °C | -40 C | Over Current Over Temperature | 35 V | Enable |
 Nisshinbo Micro Devices Inc. | 0.1 V | 300 mA | Surface Mount | Positive | 5 V | 1 | 9 µA | SOT-89-3 | 36 dB | TO-243AA | 85 °C | -40 C | Over Current Over Temperature | 35 V | |
Nisshinbo Micro Devices Inc. | 0.1 V | 300 mA | Surface Mount | Positive | 8 V | 1 | 12 µA | SOT-89-5 | 33 dB | SOT-89-5/6 | 85 °C | -40 C | Over Current Over Temperature | 35 V | Enable |
 Nisshinbo Micro Devices Inc. | 0.1 V | 300 mA | Surface Mount | Positive | 15 V | 1 | 12 µA | TO-252-5 | 29 dB | DPAK (5 Leads + Tab) TO-252-6 | 85 °C | -40 C | Over Current Over Temperature | 35 V | Enable |
Nisshinbo Micro Devices Inc. | 0.1 V | 300 mA | Surface Mount | Positive | 3.3 V | 1 | 12 µA | SOT-89-5 | 40 dB | SOT-89-5/6 | 85 °C | -40 C | Over Current | 35 V | Enable |
Nisshinbo Micro Devices Inc. | 0.1 V | 300 mA | Surface Mount | Positive | 3.3 V | 1 | 12 µA | TO-252-5 | 40 dB | DPAK (5 Leads + Tab) TO-252-6 | 85 °C | -40 C | Over Current | 35 V | Enable |
