0925-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

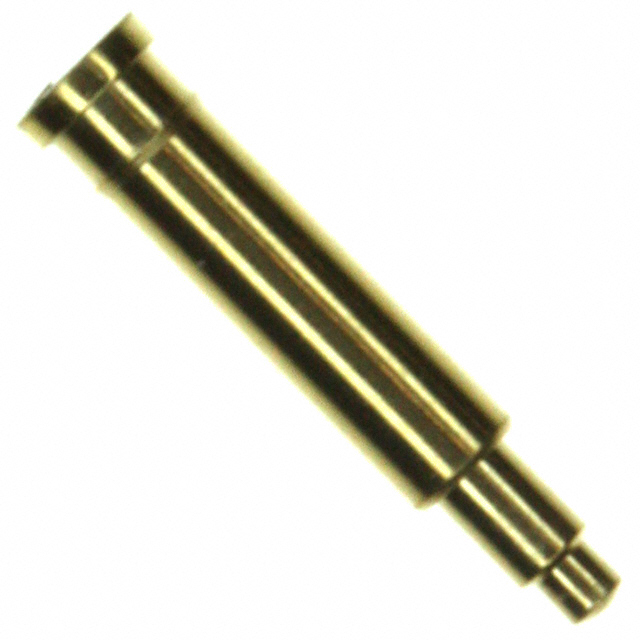

CONTACT SPRING LOADED SMD GOLD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Maximum Working Height [Max] | Maximum Working Height [Max] | Minimum Working Height | Minimum Working Height | Mating Cycles | Contact Finish Thickness | Contact Finish Thickness | Current Rating (Amps) | Contact Type | Plunger Size [diameter] | Plunger Size [diameter] | Pad Layout Dimension | Pad Layout Dimension | Contact Finish | Recommended Working Height | Recommended Working Height | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | Surface Mount | 0.335 in | 8.51 mm | 7.11 mm | 0.28 in | 1000000 | 20 µin | 0.51 µm | 2 A | Sleeve & Plunger (Pogo Pins) | 0.03 in | 0.76 mm | 0.072 in | 1.83 mm | Gold | 7.8 mm | 0.307 in | Copper Alloy |
