2SA2039 Series

Bipolar Transistor, -50V, -5A, Low VCE(sat), PNP Single TP/TP-FA

Catalog

Bipolar Transistor, -50V, -5A, Low VCE(sat), PNP Single TP/TP-FA

Part	Transistor Type	Frequency - Transition	Vce Saturation (Max) @ Ib, Ic	Voltage - Collector Emitter Breakdown (Max) [Max]	Supplier Device Package	Current - Collector Cutoff (Max) [Max]	Current - Collector (Ic) (Max)	Mounting Type	Package / Case	Power - Max [Max]	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Operating Temperature
ON Semiconductor 2SA2039-H	PNP	360 MHz	430 mV	50 V	TP	1 µA	5 A	Through Hole	IPAK TO-251-3 Short Leads TO-251AA	800 mW	200

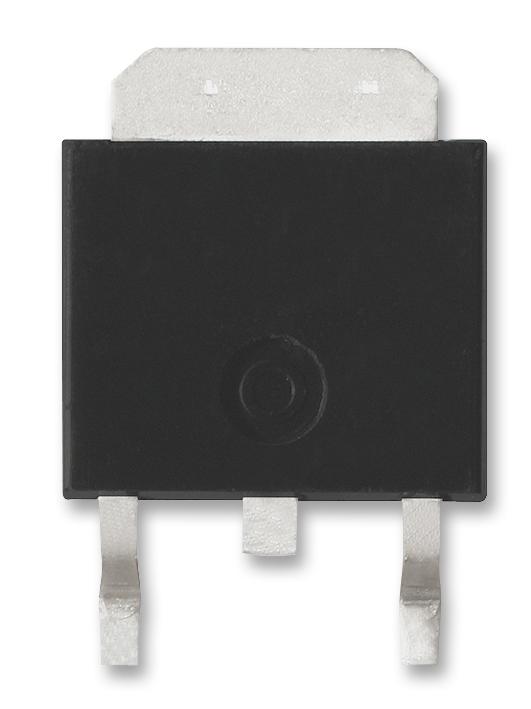

ON Semiconductor 2SA2039-TL-E	PNP	360 MHz	430 mV	50 V	TP-FA	1 µA	5 A	Surface Mount	DPAK (2 Leads + Tab) SC-63 TO-252-3	800 mW	200	150 °C
ON Semiconductor 2SA2039-E	PNP	360 MHz	430 mV	50 V	TP	1 µA	5 A	Through Hole	IPAK TO-251-3 Short Leads TO-251AA	800 mW	200	150 °C
ON Semiconductor 2SA2039-TL-H	PNP	360 MHz	430 mV	50 V	TP-FA	1 µA	5 A	Surface Mount	DPAK (2 Leads + Tab) SC-63 TO-252-3	800 mW	200

Bipolar Transistor, -50V, -5A, Low VCE(sat), PNP Single TP/TP-FA

• Adoption of FBET and MBIT processes

• Large current capacitance

• Low collector-to-emitter saturation voltage

• High-speed switching

• High allowable power dissipation

2SA2039 is a Bipolar Transistor, -50V, -5A, Low VCE(sat), PNP Single TP/TP-FA for High-Current Switching Applications.
