P2-10 Series
Manufacturer: Panduit Corp
Beta
⌘K

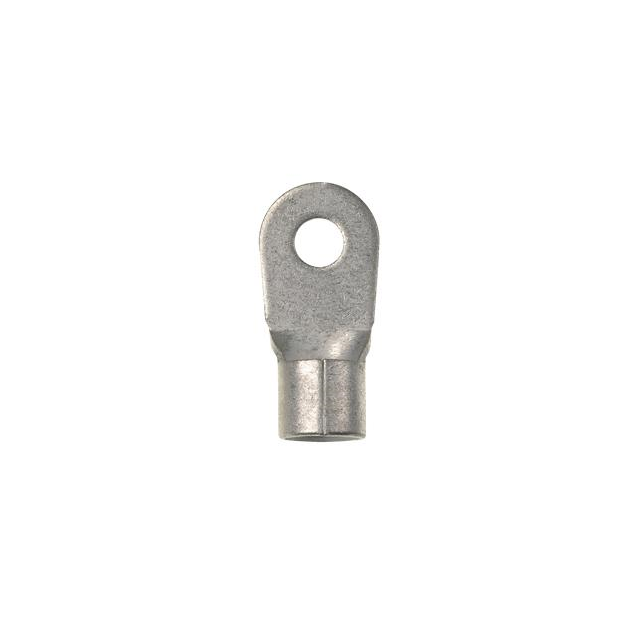

RING TONGUE TERMINAL, M5, #10, 2 AWG, 35 MM², P SERIES
| Part | Termination | Insulation | Thickness | Thickness | Contact Finish | Mounting Type | Terminal Type | Width - Outer Edges [x] | Width - Outer Edges | Contact Material | Length - Overall [x] | Length - Overall [x] | Stud/Tab Size | Wire Gauge | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panduit Corp | Crimp | Non-Insulated | 1.52 mm | 0.06 in | Tin | Free Hanging (In-Line) | Circular | 0.68 " | 17.27 mm | Copper | 37.08 mm | 1.46 in | 10 Stud | 2 AWG | Brazed Seam |
