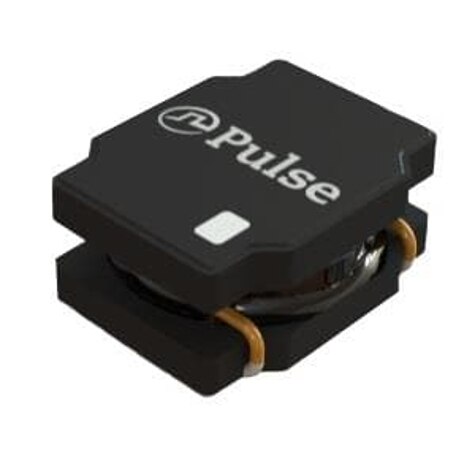

Power Inductors - SMD IND,PWR, 2.5X2.0X1.2 6.8 uH, SMT
Power Inductors - SMD IND,PWR, 2.5X2.0X1.2 6.8 uH, SMT
| Part | Current Rating (Amps) | Frequency - Self Resonant | Package / Case | Tolerance | Current - Saturation (Isat) | Type | Material - Core | Inductance Frequency - Test | Mounting Type | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Shielding | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | DC Resistance (DCR) [Max] | Inductance | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Pulse Electronics | 950 mA | 16 MHz | Nonstandard | 20 % | 1.15 A | Drum Core Wirewound | Iron | 1 MHz | Surface Mount | 0.106 in | 2.2 mm | 2.7 mm | 0.087 in | Shielded | 1.2 mm | 0.047 " | 366 mOhm | 6.8 µH | 125 °C | -40 C |
