DRB240 Series
Manufacturer: TDK Corporation
Beta
⌘K

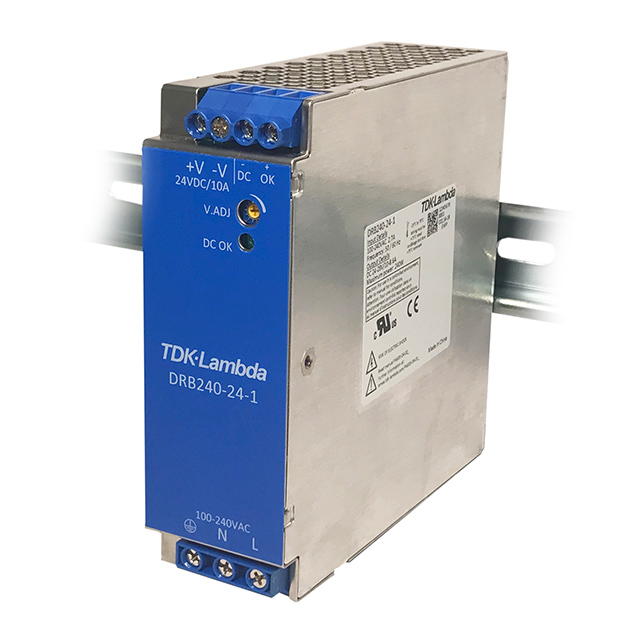

AC/DC DIN RAIL SUPPLY 24V 240W
| Part | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Number of Outputs | Voltage - Output 1 | Features | Current - Output (Max) [Max] | Efficiency | Operating Temperature [Max] | Operating Temperature [Min] | Input Type | Applications | Power (Watts) | AC Voltage - Input [Max] | AC Voltage - Input [Min] | Approval Agency | Voltage - Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TDK Corporation | 4.92 in | 125 mm | 4.88 in | 124 mm | 41 mm | 1.61 in | 1 | 24 V | Adjustable Output PFC Universal Input | 10 A | 93 % | 70 °C | -20 °C | AC | Industrial ITE (Commercial) | 240 Watts | 265 VAC | 85 VAC | CE cULus cURus EAC | 3000 V |
