073174 Series
Manufacturer: Molex
Beta
⌘K
RF CONNECTORS / COAXIAL CONNECTORS 1.0/2.3 JACK STR SR .047 CABLE50 OHM
| Part | Connector Style | Body Material | Center Contact Material | Center Contact Plating | Housing Color | Fastening Type | Dielectric Material | Body Finish | Impedance | Shield Termination | Voltage Rating | Contact Termination | Connector Type | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Cable Group | Cable Group | Mating Cycles | Number of Ports | Includes | Frequency - Max [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | 1.0/2.3 | Brass | Brass | Gold | Gold | Push-Pull | Polytetrafluoroethylene (PTFE) | Gold | 50 Ohms | Solder | 250 VDC | Solder | Female Socket Jack | Free Hanging (In-Line) | 85 °C | -55 °C | Semi Rigid | 0.047 in | 500 | 1 | ||
Molex | 1.0/2.3 | Brass | Brass | Gold | Gold | Push-Pull | Polytetrafluoroethylene (PTFE) | Gold | 50 Ohms | Solder | 250 VDC | Solder | Female Socket Jack | Free Hanging (In-Line) Right Angle | 85 °C | -55 °C | Semi Rigid | 0.047 in | 500 | 1 | ||

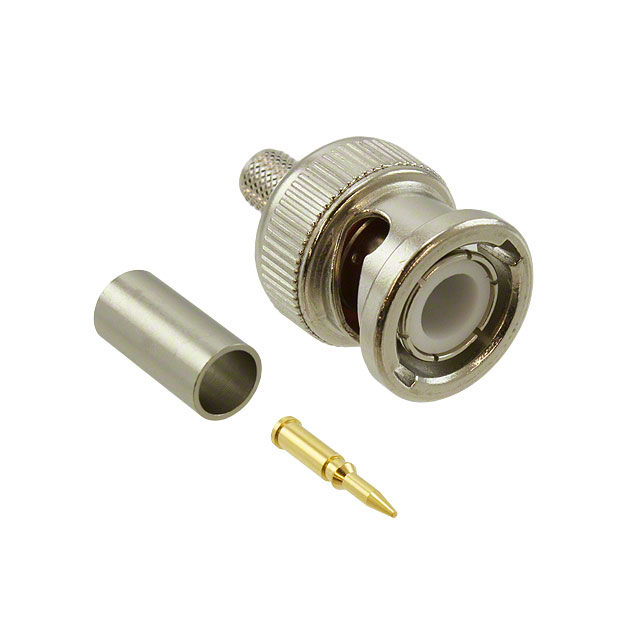

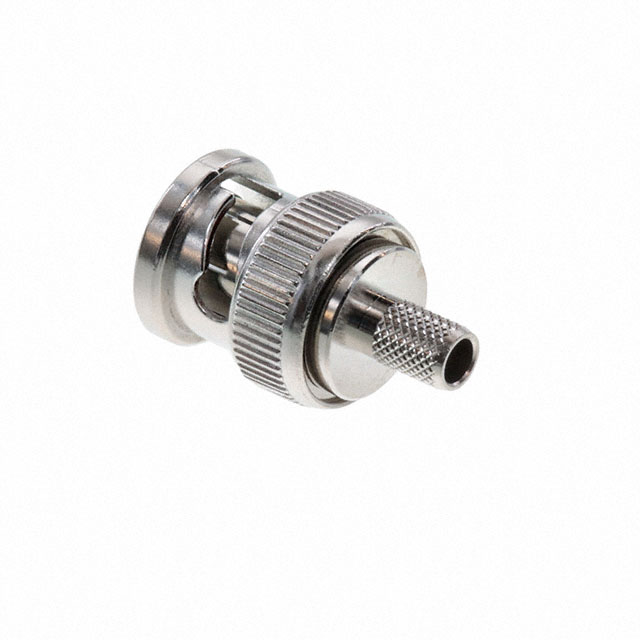

 Molex | BNC | Brass | Brass | Gold | Silver | Bayonet Lock | Polytetrafluoroethylene (PTFE) | Nickel | 50 Ohms | Crimp | Crimp Solder | Male Pin Plug | Free Hanging (In-Line) | RG-58 | 141 | 500 | 1 | 1 Connector 1 Contact 1 Ferrule | ||||
 Molex | BNC | Brass | Brass | Gold | Silver | Bayonet Lock | Polytetrafluoroethylene (PTFE) | Nickel | 50 Ohms | Crimp | Crimp Solder | Male Pin Plug | Free Hanging (In-Line) | 188 316 RG-174 | 500 | 1 | 1 Bushing 1 Connector 1 Contact 1 Ferrule 1 Washer | |||||
Molex | BNC | Brass | Brass | Gold | Silver | Bayonet Lock | Polytetrafluoroethylene (PTFE) | Nickel | 75 Ohms | Crimp | Crimp Solder | Male Pin Plug | Free Hanging (In-Line) | 62A RG-59 | 500 | 1 | 1 Connector 1 Contact 1 Ferrule | |||||
Molex | 1.0/2.3 | Brass | Phosphor Bronze | Gold | Silver | Push-Pull | Polytetrafluoroethylene (PTFE) | Nickel | 50 Ohms | Crimp | 250 VDC | Male Pin Plug | Free Hanging (In-Line) | 85 °C | -55 °C | LMR-240 | 500 | 1 | 1 Connector 1 Contact 1 Ferrule | |||
Molex | 1.0/2.3 | Brass | Beryllium Copper | Gold | Gold | Push-Pull | Polytetrafluoroethylene (PTFE) | Gold | 50 Ohms | Solder | 250 VDC | Solder | Female Socket Jack | Free Hanging (In-Line) | 85 °C | -55 °C | Semi Rigid | 0.047 in | 500 | 1 | ||
 Molex | BNC | Brass | Brass | Gold | Silver | Bayonet Lock | Polypropylene (PP) | Nickel | 50 Ohms | Crimp | Crimp Solder | Male Pin Plug | Free Hanging (In-Line) | 141A 303 RG-58C | 500 | 1 | 1 Connector 1 Contact 1 Ferrule | |||||
Molex | 1.0/2.3 | Brass | Beryllium Copper | Gold | Gold | Push-Pull | Polytetrafluoroethylene (PTFE) | Gold | 75 Ohms | Solder | 250 VDC | Solder | Female Socket Jack | Board Edge Cutout Surface Mount | 85 °C | -65 ░C | 500 | 1 | 3 GHz |
