51125 Series
Manufacturer: CNC Tech
Beta
⌘K
WIRE-TO BOARD HEADER, 2.5MM, 2 C
| Part | Insulation Height | Insulation Height | Contact Shape | Shrouding | Insulation Material | Contact Length - Post [x] | Contact Length - Post | Insulation Color | Voltage Rating | Number of Rows | Connector Type | Number of Positions | Number of Positions Loaded | Fastening Type | Pitch - Mating | Pitch - Mating | Termination | Current Rating (Amps) | Contact Type | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Material Flammability Rating | Style | Contact Finish - Post | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

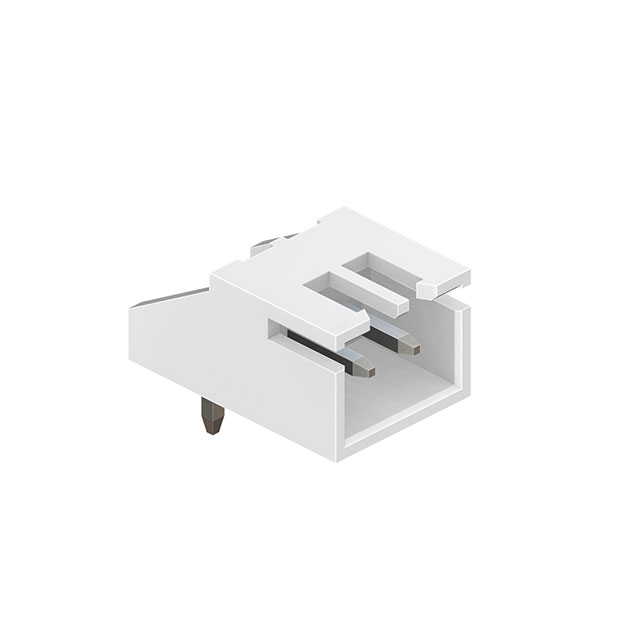

 CNC Tech | 5.74 mm 5.75 mm | 0.226 in | Square | Shrouded - 4 Wall | Nylon 6/6 Polyamide (PA66) | 0.134 " | 3.4 mm | White | 250 V | 1 | Header | 2 | All | Detent Lock | 2.5 mm | 0.098 in | Kinked Pin Solder | 3 A | Male Pin | Brass | 85 °C | -25 °C | UL94 V-0 | Board to Cable/Wire | Tin | Right Angle Through Hole |

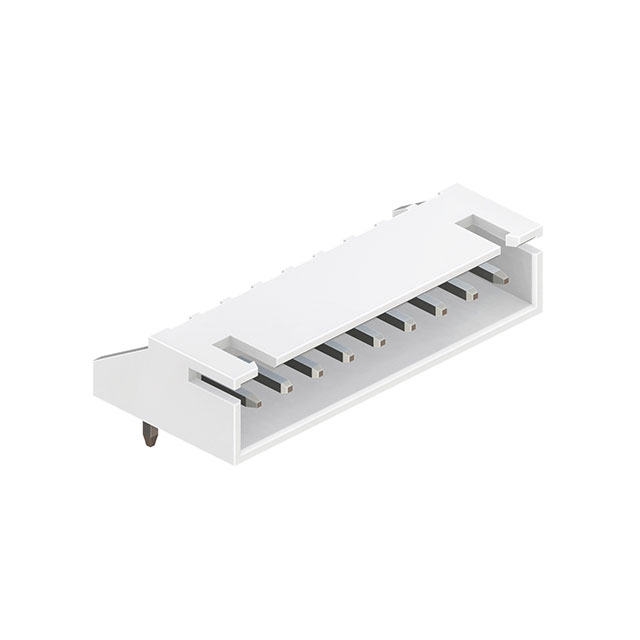

 CNC Tech | 5.74 mm 5.75 mm | 0.226 in | Square | Shrouded - 4 Wall | Nylon 6/6 Polyamide (PA66) | 0.134 " | 3.4 mm | White | 250 V | 1 | Header | 9 | All | Detent Lock | 2.5 mm | 0.098 in | Kinked Pin Solder | 3 A | Male Pin | Brass | 85 °C | -25 °C | UL94 V-0 | Board to Cable/Wire | Tin | Right Angle Through Hole |
