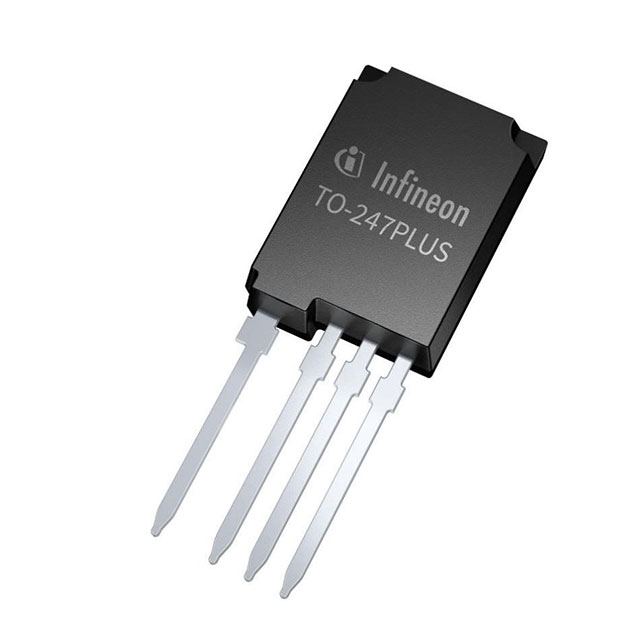

IKY75N120 Series
Manufacturer: INFINEON
Beta
⌘K
1200 V, 75 A TRENCHSTOP™ IGBT6 WITH ANTI-PARALLEL DIODE IN TO247 HOUSING. WITH A SWITCHING FREQUENCY RANGE FROM 10 KHZ TO 50 KHZ IT PERFECTLY MATCHES APPLICATIONS LIKE UNINTERRUPTIBLE POWER SUPPLY, WELDING CONVERTER, BATTERY CHARGER OR SOLAR CONVERTER.
| Part | Mounting Type | Switching Energy | Reverse Recovery Time (trr) | Vce(on) (Max) @ Vge, Ic | Current - Collector (Ic) (Max) [Max] | Current - Collector Pulsed (Icm) | Td (on/off) @ 25°C [custom] | Td (on/off) @ 25°C [custom] | Test Condition [custom] | Test Condition [custom] | Test Condition [custom] | Power - Max [Max] | Voltage - Collector Emitter Breakdown (Max) [Max] | Package / Case | IGBT Type | Operating Temperature [Max] | Operating Temperature [Min] | Supplier Device Package | Gate Charge | Test Condition | Td (on/off) @ 25°C |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

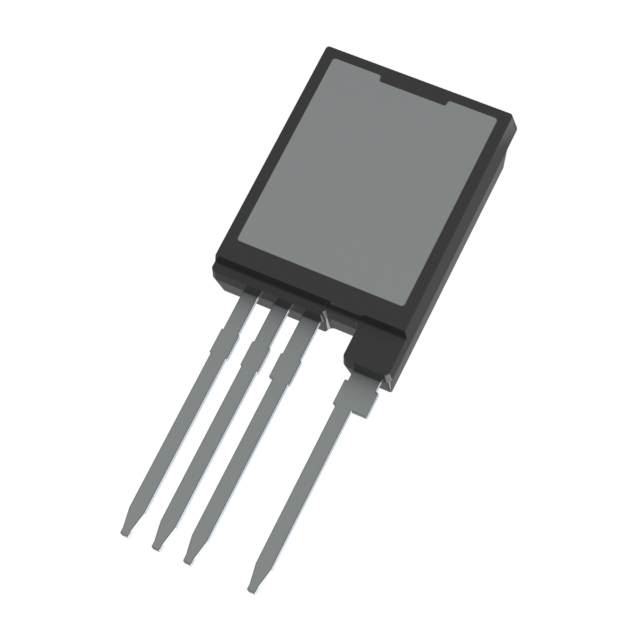

 INFINEON | Through Hole | 2.2 mJ 2.95 mJ | 205 ns | 2.15 V | 150 A | 300 A | 300 ns | 32 ns | 4 Ohm | 15 V 600 V | 75 A | 880 W | 1200 V | TO-247-4 | Trench Field Stop | 175 °C | -40 °C | PG-TO247-4-2 | 530 nC | ||
 INFINEON | Through Hole | 2.9 mJ 3.4 mJ | 292 ns | 2.35 V | 150 A | 300 A | 303 ns | 38 ns | 938 W | 1200 V | TO-247-4 | 175 °C | -40 °C | PG-TO247-4 | 6 Ohm 15 V 75 A 600 V | ||||||
 INFINEON | Through Hole | 1.81 mJ 2.02 mJ | 90 ns | 2.15 V | 83 A | 300 A | 549 W | 1200 V | TO-247-4 | Trench Field Stop | 175 °C | -40 °C | PG-TO247-4-U10 | 550 nC | 42 ns 367 ns |
