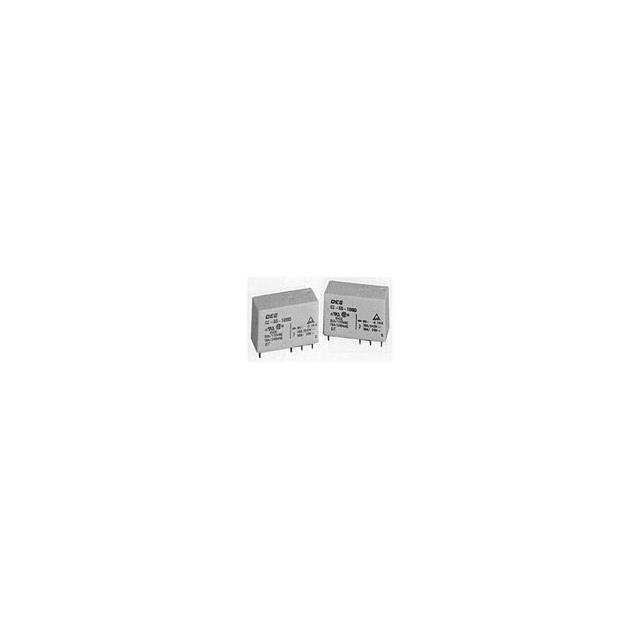

OZ-SH Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
RELAY GEN PURPOSE SPDT 16A 5V
| Part | Coil Resistance | Operate Time | Approval Agency | Switching Voltage | Contact Form | Coil Current | Must Release Voltage | Must Operate Voltage | Seal Rating | Release Time | Contact Rating (Current) | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Relay Type | Contact Material | Termination Style | Coil Voltage | Load - Max Switching | Coil Type | Coil Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 47 Ohms | 15 ms | CQC CSA TUV UR | 24 VDC 240 VAC | SPDT (1 Form C) | 138.9 mA | 0.25 VDC | 3.5 VDC | Sealed - Fully | 8 ms | 16 A | -30 ░C | 60 °C | Through Hole | General Purpose | Silver Cadmium Oxide (AgCdO) | PC Pin | 5 VDC | 380 W 3840 VA | Non Latching | |
TE Connectivity AMP Connectors | 47 Ohms | 20 ms | CQC CSA TUV UR | 24 VDC 240 VAC | SPDT (1 Form C) | 106 mA | 0.25 VDC | 3.75 VDC | Sealed - Fully | 8 ms | 16 A | -30 ░C | 70 °C | Through Hole | General Purpose | Silver Cadmium Oxide (AgCdO) | PC Pin | 5 VDC | 380 W 3840 VA | Non Latching | |
 TE Connectivity AMP Connectors | 200 Ohms | 15 ms | CQC CSA TUV UR | 24 VDC 240 VAC | SPDT (1 Form C) | 0.06 A | 0.6 VDC | 8.4 VDC | Sealed - Fully | 8 ms | 16 A | -30 ░C | 60 °C | Through Hole | General Purpose | Silver Cadmium Oxide (AgCdO) | PC Pin | 12 VDC | 380 W 3840 VA | Non Latching | |
TE Connectivity AMP Connectors | |||||||||||||||||||||
TE Connectivity AMP Connectors | 20 ms | CQC CSA TUV UR | 24 VDC 240 VAC | SPDT (1 Form C) | 21.8 mA | 1.2 VDC | 18 VDC | Sealed - Flux Protection | 8 ms | 16 A | -30 ░C | 70 °C | Through Hole | General Purpose | Silver Tin Oxide (AgSnO) | PC Pin | 24 VDC | 380 W 3840 VA | Non Latching | Class F | |
 TE Connectivity AMP Connectors | 20 ms | CQC CSA TUV UR | 24 VDC 240 VAC | SPDT (1 Form C) | 21.8 mA | 1.2 VDC | 18 VDC | Sealed - Fully | 8 ms | 16 A | -30 ░C | 70 °C | Through Hole | General Purpose | Silver Cadmium Oxide (AgCdO) | PC Pin | 24 VDC | 380 W 3840 VA | Non Latching | ||
 TE Connectivity AMP Connectors | 820 Ohms | 15 ms | CQC CSA TUV UR | 24 VDC 240 VAC | SPDT (1 Form C) | 29.3 mA | 1.2 VDC | 16.8 VDC | Sealed - Fully | 8 ms | 16 A | -30 ░C | 60 °C | Through Hole | General Purpose | Silver Cadmium Oxide (AgCdO) | PC Pin | 24 VDC | 380 W 3840 VA | Non Latching | |
 TE Connectivity AMP Connectors | 270 Ohms | 20 ms | 24 VDC 240 VAC | SPST-NO (1 Form A) | 44.4 mA | 0.6 VDC | 9 VDC | Sealed - Fully | 8 ms | 16 A | -30 ░C | 70 °C | Through Hole | General Purpose | Silver Tin Oxide (AgSnO) | PC Pin | 12 VDC | Non Latching | |||
 TE Connectivity AMP Connectors | 47 Ohms | 20 ms | CQC CSA TUV UR | 24 VDC 240 VAC | SPST-NO (1 Form A) | 106 mA | 0.25 VDC | 3.75 VDC | Sealed - Fully | 8 ms | 16 A | -30 ░C | 70 °C | Through Hole | General Purpose | Silver Tin Oxide (AgSnO) | PC Pin | 5 VDC | 380 W 3840 VA | Non Latching |
