747238 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

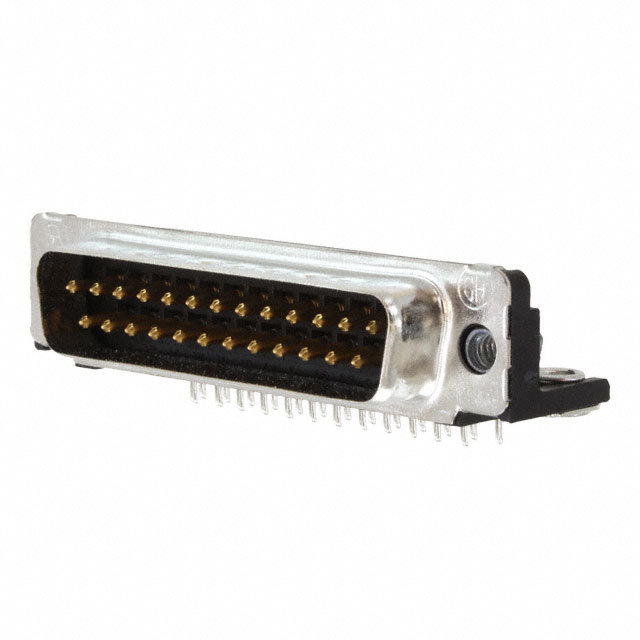

D SUB CONNECTOR, STANDARD, 25POS, PLUG
| Part | Contact Material | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Color | Current Rating (Amps) | Number of Positions | Number of Rows [custom] | Connector Type | Connector Style | Contact Type | Flange Feature | Shell Size, Connector Layout | Shell Size, Connector Layout [x] | Backset Spacing | Backset Spacing | Mounting Type | Material Flammability Rating | Contact Finish | Features | Termination | Flange Feature | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Brass | 125 VDC | -55 C | 105 ░C | Black | 6 A | 25 | 2 | Plug Male Pins | D-Sub | Signal | 4-40 Mating Side Female Screwlock | B DB | 3 | 8.08 mm | 0.318 " | Right Angle Through Hole | UL94 V-0 | Gold | Ground Strap Grounding Indents | Solder | ||
 TE Connectivity AMP Connectors | Brass | 125 VDC | -55 C | 105 ░C | Black | 6 A | 25 | 2 | Plug Male Pins | D-Sub | Signal | Housing/Shell | B DB | 3 | 8.08 mm | 0.318 " | Right Angle Through Hole | UL94 V-0 | Gold | Ground Strap Grounding Indents | Solder | 4-40 | |
TE Connectivity AMP Connectors | Brass | 125 VDC | -55 C | 105 ░C | Black | 6 A | 25 | 2 | Plug Male Pins | D-Sub | Signal | Housing/Shell | B DB | 3 | 8.08 mm | 0.318 " | Right Angle Through Hole | UL94 V-0 | Gold | Ground Strap Grounding Indents | Solder | 4-40 | Flash |
