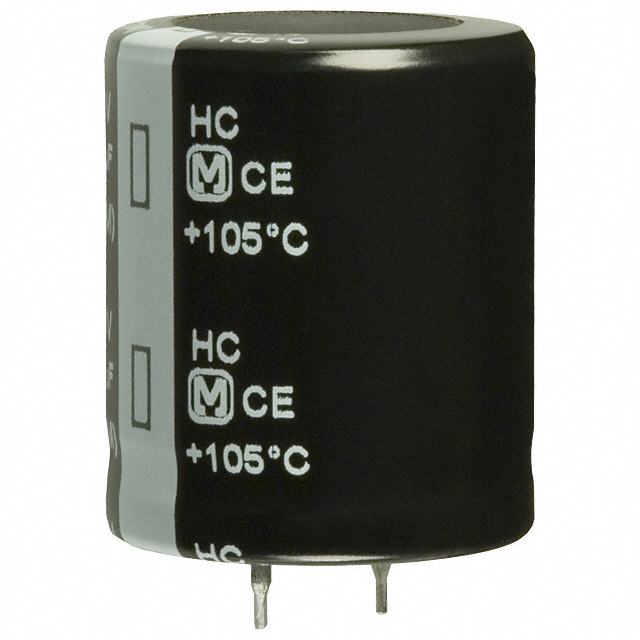

EET-HC Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

Catalog

CAP ALUM 390UF 20% 250V SNAP TH

...

Part	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Ripple Current @ High Frequency	Lifetime @ Temp.	Polarization	Ripple Current @ Low Frequency	Lead Spacing	Lead Spacing	Applications	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Voltage - Rated	Capacitance	ESR (Equivalent Series Resistance)	Size / Dimension [diameter]	Size / Dimension [diameter]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]

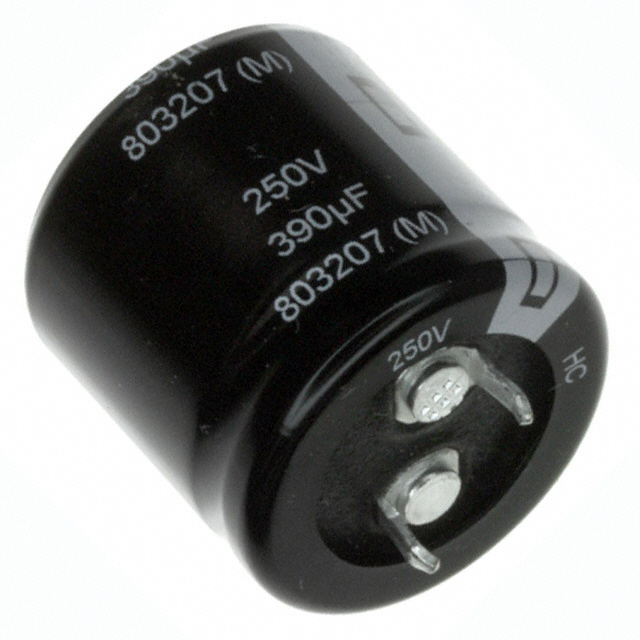

Panasonic Industrial Automation Sales EET-HC2E391JA	Through Hole	-40 °C	105 ░C	20 %	1.82 A	2000 Hrs	Polar	1.3 A	0.394 in	10 mm	General Purpose	Radial Can - Snap-In	1.063 in	27 mm	250 V	390 µF	425 mOhm	25 mm	0.984 "
Panasonic Industrial Automation Sales EET-HC2S181CA	Through Hole	-25 °C	105 ░C	20 %		2000 Hrs	Polar	910 mA	0.394 in	10 mm	General Purpose	Radial Can - Snap-In			420 V	180 çF	1.103 Ohm	25 mm	0.984 "
Panasonic Industrial Automation Sales EET-HC2S221JA	Through Hole	-25 °C	105 ░C	20 %	1.47 A	2000 Hrs	Polar	1.05 A	0.394 in	10 mm	General Purpose	Radial Can - Snap-In	1.457 in	37 mm	420 V	220 µF	829 mOhm	25 mm	0.984 "
Panasonic Industrial Automation Sales EET-HC2W121BA	Through Hole	-25 °C	105 ░C	20 %	1.01 A	2000 Hrs	Polar	720 mA	0.394 in	10 mm	General Purpose	Radial Can - Snap-In	1.457 in	37 mm	450 V	120 µF	1.52 Ohm	22 mm	0.866 in
Panasonic Industrial Automation Sales EET-HC2D471HA	Through Hole	-40 °C	105 ░C	20 %	2.03 A	2000 Hrs	Polar	1.45 A	0.394 in	10 mm	General Purpose	Radial Can - Snap-In			200 V	470 µF	423 mOhm	22 mm	0.866 in
Panasonic Industrial Automation Sales EET-HC2S271JA	Through Hole	-25 °C	105 ░C	20 %	1.68 A	2000 Hrs	Polar	1.2 A	0.394 in	10 mm	General Purpose	Radial Can - Snap-In			420 V	270 µF	675 mOhm	25 mm	0.984 "	42 mm	1.654 in
Panasonic Industrial Automation Sales EET-HC1H682HJ	Through Hole	-40 °C	105 ░C	20 %		2000 Hrs	Polar	3.3 A	0.394 in	10 mm	General Purpose	Radial Can - Snap-In	2.047 in	52 mm	50 VDC	6800 µF		22 mm	0.866 in
Panasonic Industrial Automation Sales EET-HC2G821EA	Through Hole	-25 °C	105 ░C	20 %		2000 Hrs	Polar	2.3 A	0.394 in	10 mm	General Purpose	Radial Can - Snap-In	2.047 in	52 mm	400 V	820 µF	202 mOhm	35 mm	1.378 in
Panasonic Industrial Automation Sales EET-HC2S681EA	Through Hole	-25 °C	105 ░C	20 %		2000 Hrs	Polar	2.1 A	0.394 in	10 mm	General Purpose	Radial Can - Snap-In	2.047 in	52 mm	420 V	680 µF	268 mOhm	35 mm	1.378 in
Panasonic Industrial Automation Sales EET-HC2V391DA	Through Hole	-25 °C	105 ░C	20 %	1.82 A	2000 Hrs	Polar	1.3 A	0.394 in	10 mm	General Purpose	Radial Can - Snap-In	1.457 in	37 mm	350 V	390 µF	425 mOhm	30 mm	1.181 inches
