ODB17567 Series
Manufacturer: ORION FANS
Beta
⌘K

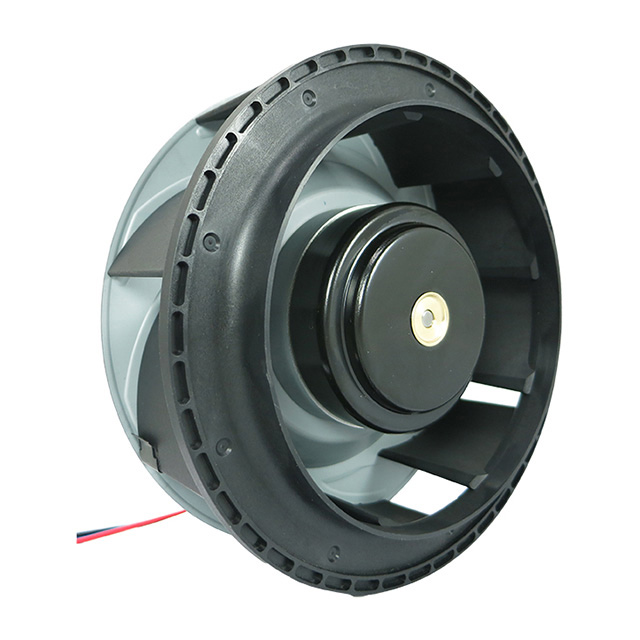

FAN BLOWER, MOTORIZED IMPELLER, 24 VDC, DC, 175 MM, 67 MM, 338 CFM
| Part | Current Rating (Amps) | Material - Blade | Material - Frame | Lifetime @ Temp. | Static Pressure | Static Pressure | Features | Voltage - Rated | Width [x] | Approval Agency | Operating Temperature | Size / Dimension | Size / Dimension [diameter] | Bearing Type | Termination | Air Flow | Air Flow | Power (Watts) | RPM | Noise | Fan Type | Weight | Weight | Voltage Range [Min] | Voltage Range [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ORION FANS | 2.1 A | Thermoplastic | Aluminum | 40000 Hrs | 343.7 Pa | 1.38 in H2O | PWM Control Speed Sensor (Tach) | 24 VDC | 67 mm | CE cURus TUV UR | 14 ~ 149°F (-10 ~ 65°C) | Round | 175 mm | Ball | 4 Wire Leads | 298 CFM | 8.34 m³/min | 50.4 W | 3000 RPM | 64 dB(A) | Motorized Impellers | 900 g | 1.9 lbs | ||
 ORION FANS | 4.2 A | Thermoplastic | Aluminum | 40000 Hrs | 343.7 Pa | 1.38 in H2O | PWM Control Speed Sensor (Tach) | 12 VDC | 67 mm | CE TUV | 14 ~ 149°F (-10 ~ 65°C) | Round | 175 mm | Ball | 4 Wire Leads | 298 CFM | 8.34 m³/min | 50.4 W | 3000 RPM | 64 dB(A) | Motorized Impellers | 900 g | 1.9 lbs | 8 V | 14 V |
ORION FANS | 1.03 A | Thermoplastic | Aluminum | 40000 Hrs | 343.7 Pa | 1.38 in H2O | PWM Control Speed Sensor (Tach) | 48 VDC | 67 mm | CE cURus TUV UR | 14 ~ 149°F (-10 ~ 65°C) | Round | 175 mm | Ball | 4 Wire Leads | 298 CFM | 8.34 m³/min | 50.4 W | 3000 RPM | 64 dB(A) | Motorized Impellers | 900 g | 1.9 lbs | 22 VDC | 54 VDC |
