OSTTB05 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K

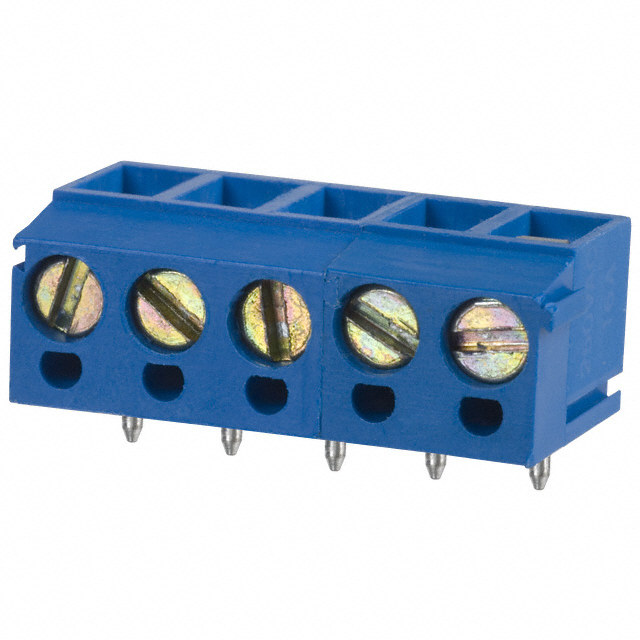

TERM BLK 5POS TOP ENTRY 5MM PCB
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material - Plating | Clamp Material - Plating [custom] | Torque - Screw | Torque - Screw | Housing Material | Screw Material - Plating | Screw Thread | Number of Levels | Color | Current | Wire Termination | Mounting Type | Features | Pitch | Pitch | Wire Gauge [Min] | Wire Gauge [Max] | Positions Per Level | Mating Orientation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 On Shore Technology Inc. | -30 ░C | 105 ░C | Tin Plated | Stainless Steel | 2.6 Lb-In | 0.3 Nm | Thermoplastic | Steel - Zinc Plated | M3 | 1 | Blue | 16 A | Screw - Leaf Spring Wire Guard | Through Hole | Interlocking (Side) | 0.197 in | 5 mm | 14 AWG | 22 AWG | 5 | Vertical with Board |
