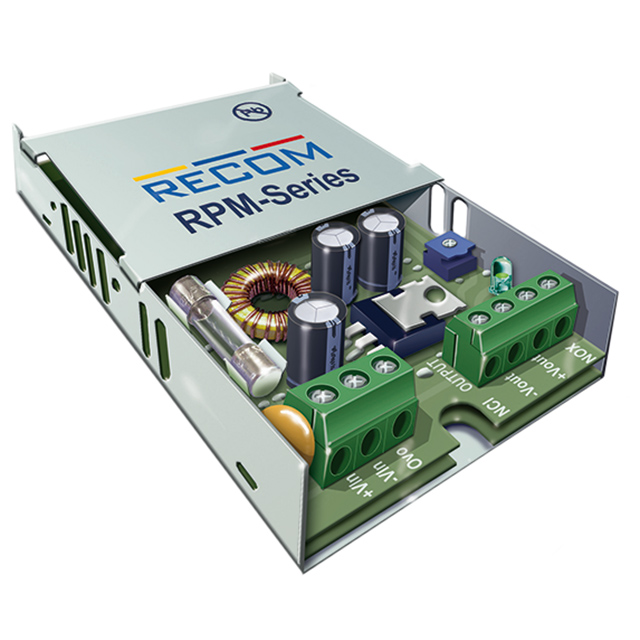

RPM20 (FW) Series

Catalog

ISOLATED DC/DC CONVERTERS - CHASSIS MOUNT 20W DC/DC 1.6KV REG +/-15VOUT NEG

Part	Applications	Number of Outputs	Voltage - Input (Max) [Max]	Type	Voltage - Output 2	Current - Output (Max)	Current - Output (Max)	Mounting Type	Voltage - Output 1	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Power (Watts)	Approval Agency	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]

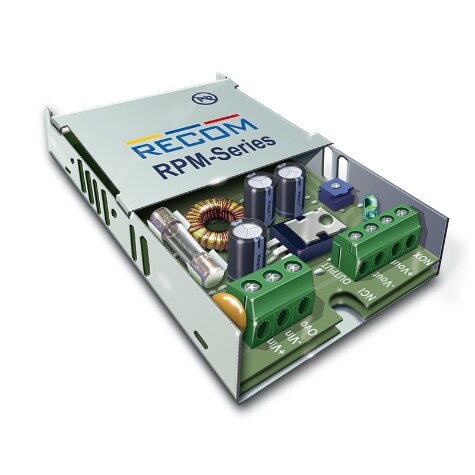

Recom Power RPM20-4815DFW/N	ITE (Commercial)	2	75 V	Enclosed	-15 V	667 mA	667 mA	Chassis Mount	15 V	2.27 in	57.6 mm	24.5 mm	125 mm	0.97 in	4.92 in	20 W	CE	18 V
Recom Power RPM20-4815SFW	ITE (Commercial)	1	75 V	Enclosed				Chassis Mount	15 V	2.27 in	57.6 mm	24.5 mm	125 mm	0.97 in	4.92 in	20 W	CE	18 V	1.33 A
Recom Power RPM20-4805SFW	ITE (Commercial)	1	75 V	Enclosed				Chassis Mount	5 V	2.27 in	57.6 mm	24.5 mm	125 mm	0.97 in	4.92 in	20 W	CE	18 V	4 A
Recom Power RPM20-2412SFW	ITE (Commercial)	1	36 V	Enclosed				Chassis Mount	12 V	2.27 in	57.6 mm	24.5 mm	125 mm	0.97 in	4.92 in	20 W	CE	9.5 V	1.67 A
Recom Power RPM20-2415DFW	ITE (Commercial)	2	36 V	Enclosed	-15 V	667 mA	667 mA	Chassis Mount	15 V	2.27 in	57.6 mm	24.5 mm	125 mm	0.97 in	4.92 in	20 W	CE	9.5 V
Recom Power RPM20-2415SFW	ITE (Commercial)	1	36 V	Enclosed				Chassis Mount	15 V	2.27 in	57.6 mm	24.5 mm	125 mm	0.97 in	4.92 in	20 W	CE	9.5 V	1.33 A
Recom Power RPM20-2412SFW/N	ITE (Commercial)	1	36 V	Enclosed				Chassis Mount	12 V	2.27 in	57.6 mm	24.5 mm	125 mm	0.97 in	4.92 in	20 W	CE	9.5 V	1.67 A
Recom Power RPM20-243.3SFW	ITE (Commercial)	1	36 V	Enclosed			5 A	Chassis Mount	3.3 V	2.27 in	57.6 mm	24.5 mm	125 mm	0.97 in	4.92 in	20 W	CE	9.5 V
Recom Power RPM20-4812SFW/N	ITE (Commercial)	1	75 V	Enclosed				Chassis Mount	12 V	2.27 in	57.6 mm	24.5 mm	125 mm	0.97 in	4.92 in	20 W	CE	18 V	1.67 A
Recom Power RPM20-4812DFW	ITE (Commercial)	2	75 V	Enclosed	-12 V	833 mA	833 mA	Chassis Mount	12 V	2.27 in	57.6 mm	24.5 mm	125 mm	0.97 in	4.92 in	20 W	CE	18 V
